8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai

Name: 8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM 200-445
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(298)

Slope Protection Geocell
(87)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai

Large Image : 8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015
Model Number:	GM 200-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai

Description

Geocell Material:	High Density Polyethylene	Thickness:	1.2mm-1.6mm
Geocell Standard:	ASTM Or GB Standard	HDPE Geocell Height:	8 Inch
Surface:	Textured& Perforated	Welded Distance:	445mm
Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
Geocell Peeling Strength:	10-14.2kN/m	Geocell Tensile Strength:	25kN/m
Geocell Our Minimum Quantity:	2600m2	Geocell ESCR:	5000 Hours
HDPE Geocell OIT:	150min	Geocell Elongation At Break:	6%-15%
Highlight:	8-inch HDPE geocell for parking lots , black welded geocell pavement reinforcement , HDPE geocell with 445mm welded space

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam

GEOMAX INTRODUCTION

GeoMax® Geocells consist of robust, three-dimensional honeycomb frameworks crafted from durable high-density polyethylene (HDPE) panels, with ultrasonic welding technology used to bond these panels together seamlessly.

A key advantage of these geocells lies in their ability to be filled with locally sourced materials such as sand, soil, or other on-site substances—an attribute that positions them as a practical and cost-effective option for a wide range of geotechnical initiatives.

This innovative system stands out for its excellent cost-efficiency and boasts a diverse array of use cases. These include, but are not limited to, driveway construction, highway and railway infrastructure, landscape design, landfill sites, parking area development, and pipeline projects. The system is expected to deliver substantial time and labor savings by cutting down on project expenses, minimizing environmental footprint, and streamlining the installation process.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

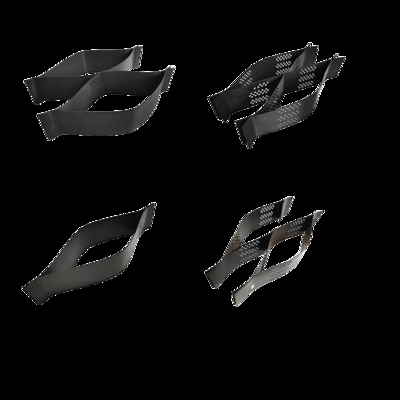

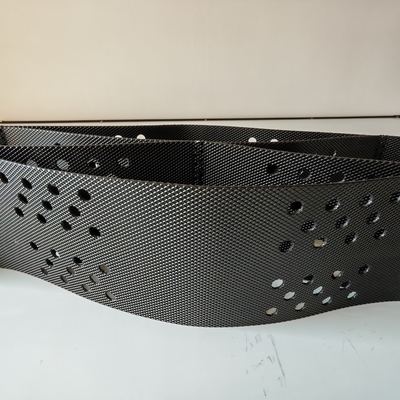

GEOMAX DETAILED PHOTOS

8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai 0

8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai 1

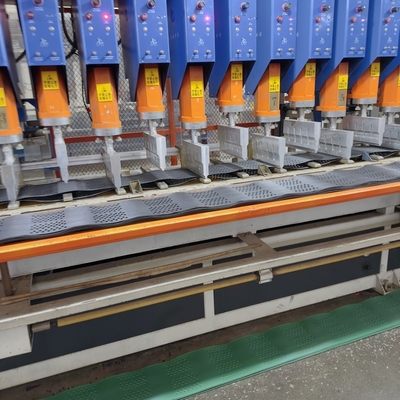

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

8-inch Deep Black HDPE Geocell for Parking Lot & Pavement Base Reinforcement 445mm Welded Space In Dubai 6

FAQ:

1. Q: How to protect Geocell from damage by railway track components (such as sleepers and fasteners) during installation?
A: Before installing the Geocell, lay a 50mm thick non - woven geotextile (mass per unit area ≥ 200g/m²) on the subgrade surface to isolate the Geocell from sharp components. When placing sleepers on the Geocell - filled ballast bed, ensure the sleepers are placed in the middle of the Geocell cells to avoid direct pressure on the Geocell walls. Additionally, use rubber gaskets (thickness 10mm) between the sleepers and the ballast to reduce local pressure on the Geocell.
1. Q: In high - speed railway subgrade projects, what testing standards should Geocell meet to ensure driving safety?
A: Geocell for high - speed railways should meet the requirements of GB/T 21726 - 2019 . Key indicators include: tensile strength ≥ 25MPa, elongation at break 10% - 20%, UV resistance (after 168h UV aging test, tensile strength retention rate ≥ 80%), and frost resistance (after 50 freeze - thaw cycles, no cracks or delamination). Additionally, field tests such as plate load tests should be conducted, requiring the subgrade bearing capacity ≥ 150kPa and the elastic modulus ≥ 150MPa.
