Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard

Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard
Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard

Large Image :  Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard

Description
Material: High-density Polyethylene (HDPE) Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Smooth Textured Perforated Standard: ASTM
High Light:

445mm gravel grid stabilizer

,

ASTM gravel grid stabilizer

,

ASTM gravel drive stabilizer



PRODUCT DESCRIPTION

Plastic HDPE Black Driveway Grid Gravel Geocell For Gravel Driveway Paver Slop Protection



Product Introduction



The three-dimensional lateral confinement of HDPE GEOCELL along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing (if exposed to severe mechanical and hydraulic pressures). The enhanced drainage, frictional forces and cell-soil-plant interaction of GEOCELL prevents downslope movement and limits the impact of raindrops, channelling and hydraulic shear stresses



Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 1

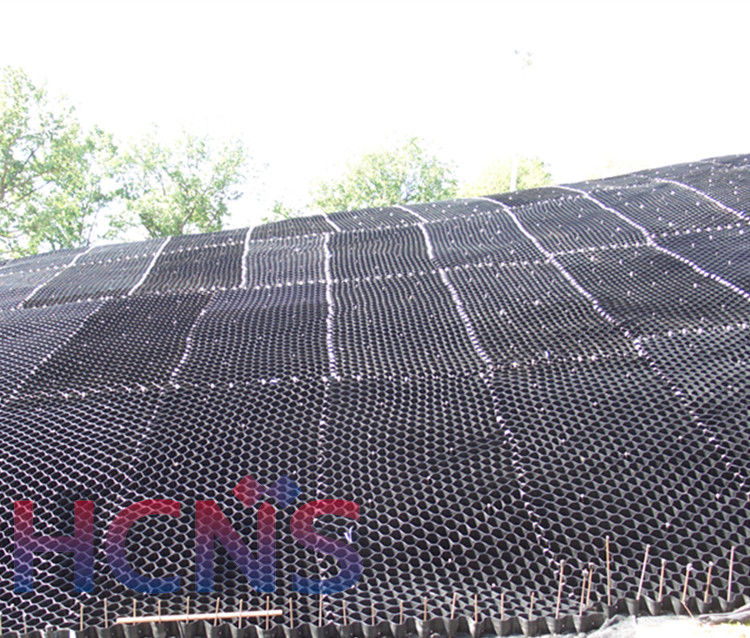

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 3

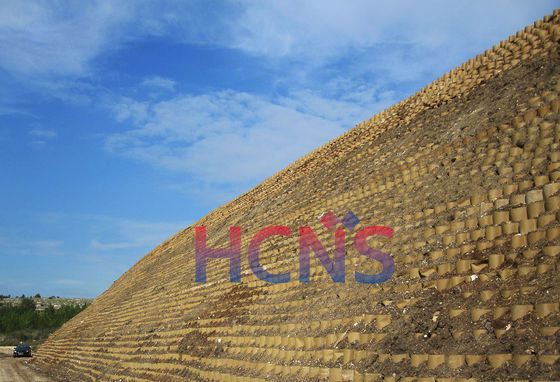

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 4                                                                                     Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 5



Our Certificates and HDPE Geocell Testing reports

Plastic HDPE Black Gravel Grid Stabilizer Drive 445mm ASTM Standard 6
