100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection
100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

Large Image :  100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-330
Payment & Shipping Terms:
Minimum Order Quantity: 2000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

Description
Geocell Material: High Density Polyethylene Cell Thickness: 1.1-1.5mm
Surface: Smooth Textured Surface Perforated Tensile Strength: 25kN/m
Quality Standard: ASTM; GB Standard;ISO-9001-2015 Seam Peel Strength: 14.2 KN/m
Cell Height: 100mm Color: Black
Geocell Welding Distance: 330mm Density: 0.950 G/cm3
OIT: 100Min

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance three-dimensional cellular structure made from high-density polyethylene (HDPE) sheets. These sheets are joined together via ultrasonic welding, forming a durable mesh framework that boasts excellent structural stability.

The cellular compartments of this structure can be filled with sand, soil, or locally accessible materials— a design that makes it a versatile and cost-effective choice for a wide array of geotechnical applications. As a matter of fact, it ranks among the most efficient solutions for tackling diverse geotechnical challenges, delivering reliable performance across different project scenarios.
This state-of-the-art system offers value-enhanced solutions for various infrastructure projects, including driveways, highways, railways, landscape development, landfills, parking lots, and more. All these projects represent the typical application fields where this product can fully demonstrate its advantages.
When this system is adopted, it enables the reduction of overall project costs, the minimization of environmental impact, and the improvement of workflow efficiency. These objectives—cutting project expenses, lessening environmental footprint, and optimizing work processes—are essential to ensuring the smooth and successful implementation of any project.
Furthermore, the system brings significant savings in both time and labor. It achieves this by directly lowering total project costs and, at the same time, reducing adverse effects on the environment, making it a sustainable and economical choice for infrastructure development.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 0 100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 1

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 2 100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 3

APPLICATIONS

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

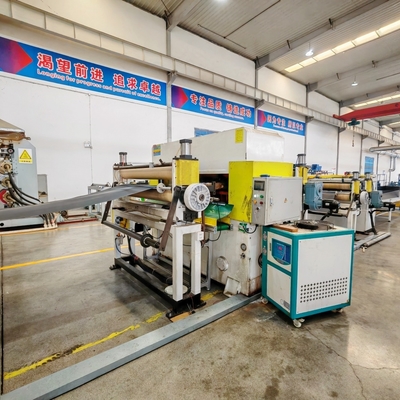

PRODUCTION LINE

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 8

INVENTION AND TESTING

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 9



PRODUCT AREA

100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 10

FAQ:

    1. Q: For mining haul roads with heavy load trucks (load ≥ 100 tons), what Geocell specifications and filling materials are suitable to resist severe wear and deformation?
    A: For 100 - ton heavy load mining haul roads, select high - strength HDPE Geocell with a cell height of 200 - 250mm, a tensile strength ≥ 35MPa, and a cell side length of 500mm. The filling material should be high - density crushed stone (particle size 30 - 60mm, compressive strength ≥ 40MPa) mixed with 3% - 5% of asphalt emulsion to improve the bonding between particles. The filling layer should be compacted with a 30t vibratory roller to a density of ≥ 2.3g/cm³. This scheme can reduce road deformation by 60% - 70% and extend the road maintenance cycle from 1 - 2 months to 6 - 8 months.
    1. Q: How to use Geocell to stabilize the mine dump to prevent landslides?
    A: First, level the dump surface and remove loose rocks. Then, lay a 200g/m² geotextile on the surface, and unfold the Geocell (cell height 150mm, cell side length 400mm) along the dump slope. Fix the Geocell with steel anchors (length 800mm, diameter 25mm) at a spacing of 800mm × 800mm, and ensure the anchors penetrate into the stable soil layer. Fill the Geocell with mine waste rock (particle size 20 - 50mm) in layers (each layer height 100mm), and compact each layer with a bulldozer. For the top of the dump, use Geocell with a cell height of 200mm and fill it with soil to plant grass for ecological restoration.
    1. Q: Can Geocell be used for the construction of mine goaf (underground mined - out area) treatment, and what is the construction method?
    A: Yes. The construction method is: first, drill vertical holes (diameter 200mm) from the ground to the goaf at a spacing of 2m × 2m. Then, lower the folded Geocell (cell height 300mm) into the goaf through the holes, and expand the Geocell by injecting high - pressure air. Fill the Geocell with cement mortar (strength grade M20) through the holes until the mortar overflows from the holes, indicating that the Geocell is fully filled. After the mortar solidifies, the Geocell forms a stable support structure, which can effectively prevent ground subsidence. The spacing of the holes can be adjusted according to the size and stability requirements of the goaf.
    1. Q: In mining areas with acidic mine drainage (pH 2 - 4), how to select Geocell to resist acid corrosion?
    A: Select Geocell made of modified HDPE material with acid - resistant additives. The material should pass the acid corrosion test: after immersing in 5% sulfuric acid solution for 1000h, the tensile strength retention rate ≥ 75% and the weight loss rate ≤ 5%. Additionally, lay a 50mm thick acid - resistant geotextile (made of polypropylene) between the Geocell and the acid - contaminated soil to further isolate the acid. The filling material should use acid - resistant gravel (such as granite crushed stone) to avoid chemical reactions with the acid drainage.
    1. Q: How to use Geocell to reclaim the land in closed mines and convert it into farmland or green space?
    A: First, clear the mine site and remove toxic and harmful substances. Then, level the ground and lay a 300mm thick clay layer (compaction degree ≥ 90%) to prevent groundwater pollution. Lay Geocell (cell height 100mm, cell side length 300mm) on the clay layer, and fix it with plastic anchors. Fill the Geocell with a mixture of topsoil, organic fertilizer, and sand (ratio 80:15:5) to a thickness equal to the Geocell cell height. For farmland reclamation, select soil - suitable crops (such as corn and soybeans) and conduct soil fertility testing regularly to adjust the fertilizer application. For green space, plant trees and grass to improve the ecological environment.



100mm Deep Black HDPE Geocell 330mm Welded Space for Drainage Ditch Lining & Swale Protection 11
