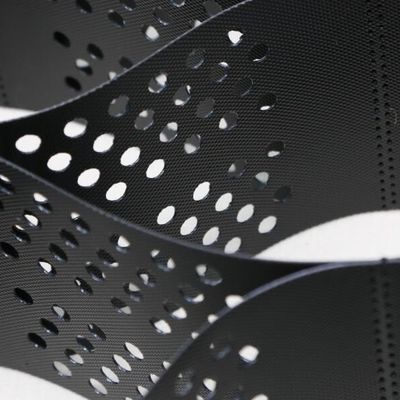

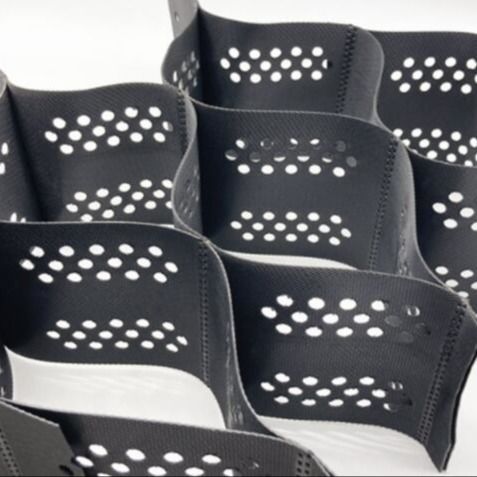

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell
Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Large Image :  Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-356
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Description
Material: HDPE Type: 100-356
Color: Black Welding Space: 356mm
Thickness: 1.5mm Height: 100
Surface: Perforated Standard: ASTM



PRODUCT DESCRIPTION

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell



Product Introduction



HPDE Geocell is the three dimensional cellular confinement product which features lower cost, easy deployment, high strength and permeability. BPM high quality HDPE geocell is made of high density polyethylene (HDPE) and jointly welded by ultrasonic technology to ensure consistency, resistance to erosive forces on steep, longer lasting performance, flexible package and transport with a wide range of cell sizes and depths to meet your project and civil engineering application requirements. BPM geocells widely used in construction for erosion control, soil stabilization on flat ground, shorelines, steep slopes, multi-layered retaining walls, channel protection and structural reinforcement for heavy duty load support roads and earth retention.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95





 Application



Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 4                                                                                     Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 5



Our Certificates and HDPE Geocell Testing reports

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell 6
