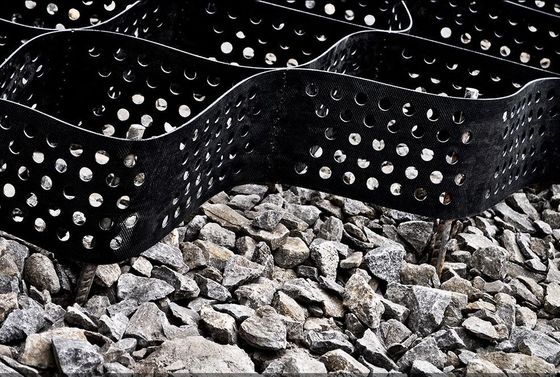

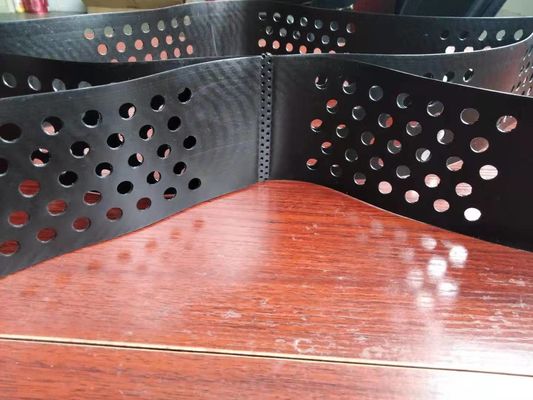

1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet

1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet
1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet

Large Image :  1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet

Description
Material: High-density Polyethylene (HDPE) Type: 100-330
Color: Black Welding Space: 330mm
Thickness: 1mm Height: 100
Surface: Smooth Standard: ASTM
High Light:

1.8mm HDPE Geocell

,

1.1mm HDPE Geocell

,

Plastic geocell confinement system



PRODUCT DESCRIPTION

1.1-1.8mm Textured Perforated HDPE Plastic Sheet Cellular Geocell



Product Introduction



Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site . The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 4                                                                                     1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 5



Our Certificates and HDPE Geocell Testing reports

1.1mm-1.8mm Textured Perforated HDPE Geocell Confinement System Plastic Sheet 6
