OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection

OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection
OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection

Large Image :  OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-712
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection

Description
Material: High-density Polyethylene (HDPE) Type: 150-712
Color: Black Welding Space: 712mm
Thickness: 1.5mm Height: 150
Surface: Smooth Standard: ASTM
High Light:

OEM HDPE Geocell

,

Geoweb HDPE Geocell

,

OEM geoweb cellular confinement system



PRODUCT DESCRIPTION

HDPE Geo Web Geocell Cellular Confinement System Geocell For Slope Protection



Product Introduction



GEOMAX GEOCELL serves many benefits to the material it confines, such as boosting weight-bearing capabilities, preventing lateral movement, and providing durable stabilization. There are four main applications that geocell provides solutions: soil stabilization, erosion control, channel protection, and retaining walls. It is being widely used in construction, such as highway, railway, bridge, dyke, etc. Geocells are use in civil engineering for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 1

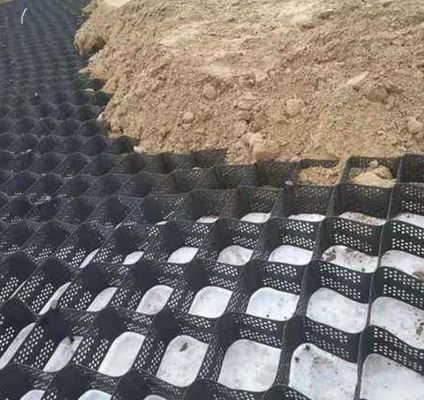

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 4                                                                                     OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 5



Our Certificates and HDPE Geocell Testing reports

OEM HDPE Geocell Geoweb Cellular Confinement System For Slope Protection 6
