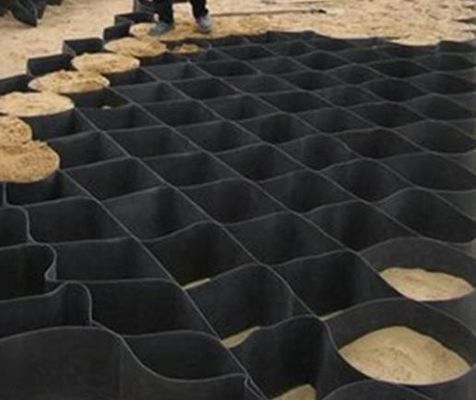

Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection

Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection
Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection

Large Image :  Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-712
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection

Description
Material: High-density Polyethylene (HDPE) Type: 150-712
Color: Black Welding Space: 712mm
Thickness: 1.5mm Height: 150
Surface: Smooth Standard: ASTM
High Light:

Reinforced HDPE geocell fabric

,

Cellular geocell fabric

,

Cellular geocell for slope protection



PRODUCT DESCRIPTION

Reinforced HDPE Geocell Cellular Confinement System Geocell For Slope Protection



Product Introduction



The Advantage of Geocell
- Provides cost effective, long-term slope and channel protection and stabilization.
- Ease in transportation and on-site handling due to collapsible cells.
- Rapid and simple installation conforms to most terrain profiles.
- Ultrasonic welding of cell joints ensures maximum strength.
- Easily dismantled and subsequently re-used.
- Withstands high weight bearing loads.
- Resistant to biological attack and a wide range of soil borne chemicals.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 1

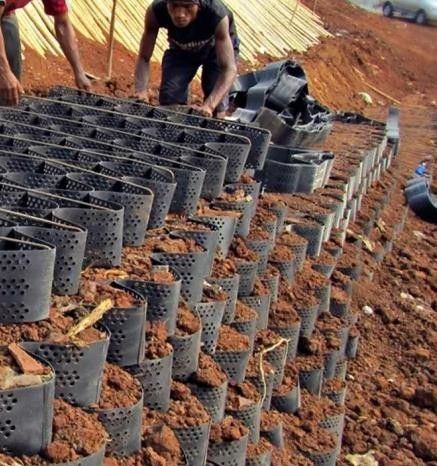

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 4                                                                                     Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 5



Our Certificates and HDPE Geocell Testing reports

Reinforced HDPE Cellular Confinement Geocell Fabric For Slope Protection 6
