HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm

HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm
HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm

Large Image :  HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 75-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm

Description
Material: High-density Polyethylene (HDPE) Type: 75-330
Color: Black Welding Space: 712mm
Thickness: 1.5mm Height: 75
Surface: Smooth Standard: ASTM
High Light:

75mm geocellular confinement

,

HDPE geocellular confinement

,

75mm geocell slope protection



PRODUCT DESCRIPTION

75mm HDPE Geocell Erosion Control Virgin Material



Product Introduction

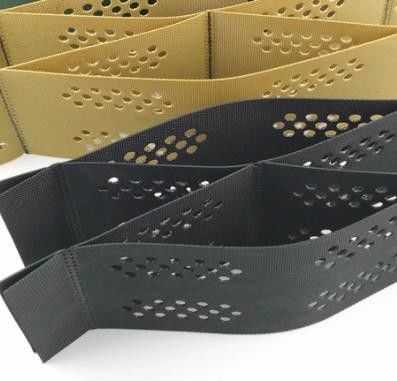

Plastic geocell cellular confinement system is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement
in the lateral and vertical sides.


Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm 0

SOIL REINFORCEMETN

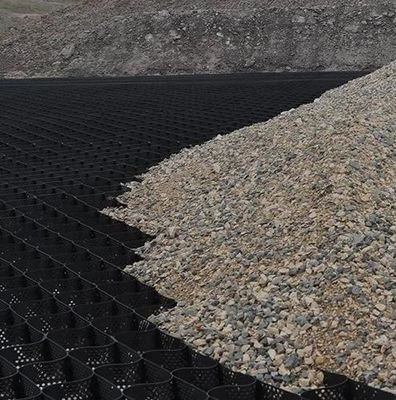

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell Geocellular Confinement Virgin Geocell Slope Protection 75mm 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
