Product Details:
|
| Material: | High-density Polyethylene (HDPE) | Type: | 150-330 |
|---|---|---|---|
| Color: | Black | Welding Space: | 712mm |
| Thickness: | 1.5mm | Height: | 150 |
| Surface: | Smooth Textured Perforated | Standard: | ASTM |
| High Light: | Gravel HDPE Geocell,Plastic HDPE Geocell,Road Reinforcement plastic geocell |
||
PRODUCT DESCRIPTION
High Quality Road Reinforcement Plastic HDPE Geocell For Soil Gravel Stabilizer
Product Introduction

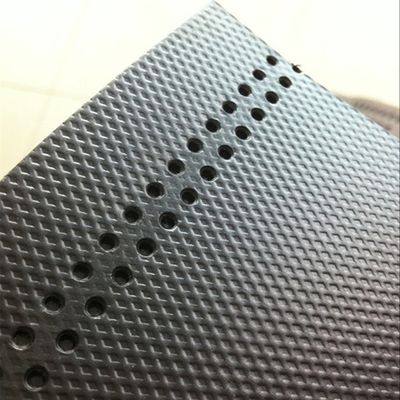

Plastic geocell is one new type geosynthetics material, basic sheet is high-molecular polymer, connected by rivets or ultrasonic welded to three-dimensional network structure, unfold it and fill in sand, gravel and clay etc. when used at construction site. According to customer's requirement, cut holes or carve arabesquitic in order to increase its lateral permeable ability, also increase the friction and binding force with the foundation material.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
Our Certificates and HDPE Geocell Testing reports
