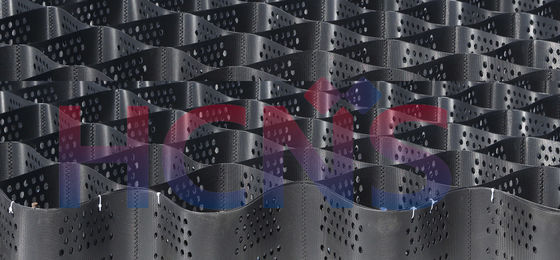

CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445

CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445
CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445

Large Image :  CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445

Description
Material: High-density Polyethylene (HDPE) Type: 100-445
Color: Black Welding Space: 445mm
Thickness: 1.2mm Height: 100
Surface: Smooth Textured Perforated Standard: ASTM
High Light:

CCS gravel patio stabilizer

,

gravel patio stabilizer Geocellular

,

plastic gravel stabilizer Geocellular



PRODUCT DESCRIPTION

HDPE Geocell Used In Slop Protection 100-445



Product Introduction



The HDPE GEOCELL  3-dimensional geocellular honeycomb structure confines and stabilizes cohesionless soils, delivering strength and higher performance to soils than when unconfined. The CCS technology is based on the interaction between hoop stresses in the geocell cell walls and passive earth resistance of single or multi-layered geocell systems.



Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 1

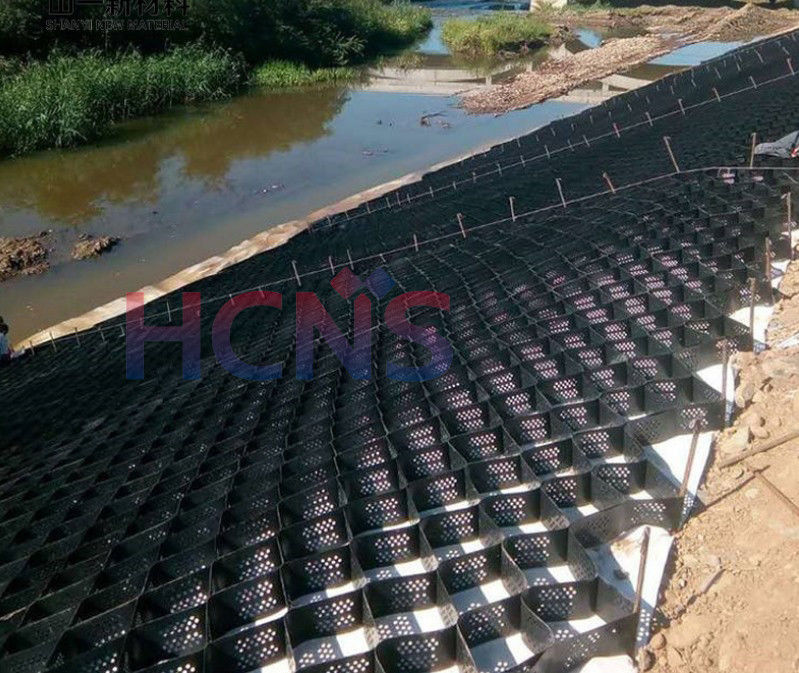

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 4                                                                                     CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 5



Our Certificates and HDPE Geocell Testing reports

CCS HDPE Plastic Gravel Patio Stabilizer Geocellular 100-445 6
