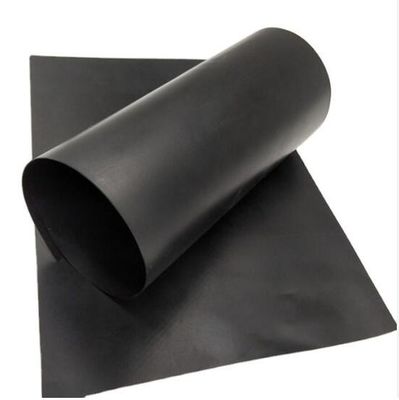

Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm

Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm
Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm

Large Image :  Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: Geomembrane
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Square Meter
Price: Negotiation
Packaging Details: Packed in The Woven Bags orCcustomized
Delivery Time: 7 -20days
Payment Terms: T/T, L/C
Supply Ability: 10000suqre Mater/Day

Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm

Description
Material: HDPE LDPE LLDPE PVC PE Length: 50-200m
Width: 1m~8m Thickness: 0.2mm~3mm
Transport Package: HDPE Geomembrane Liner Is Packed In The Woven Bags Specification: 0.5mm 0.75mm 1.0mm 1.5mm 2mm
Origin: Anhui, China Application: Transportation Project, Hydraulic Project, Geotechnical Project, Environmental Project
High Light:

Waterproofing HDPE Geomembrane Sheet

,

2mm HDPE Geomembrane Sheet

,

Geomembrane 2mm hdpe liner



PRODUCT DESCRIPTION

HDPE / PVC Waterproofing Plastic Geomembrane Sheet



Product Introduction

1. Good physical and mechanic performance.
2. High tearing resistance, strong deformation adptability.
3. Corrosion resistance, aging resistance.
4. Good adaptability to high and low temperature, non-toxicity, long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy installation.



Specifications



Specification Test method Unit Type
thickness ASTM 05199 mm 0.75 1 1.25 1.5 2
density ASTM 0 1505 g/cm3. min. 0.939 0.939 0.939 0.939 0.939
tensile strength at yield ASTM 06693 KN/m. min. 11 15 18 22 29
tensile strength at break ASTM 06693 KN/m. min. 20 27 33 40 53
elongation at yield ASTM 06693 %.max. 12 12 12 12 12
elongation at break ASTM 06693 %.max. 700 700 700 700 700
tear resistance ASTM 0 1004 N 93 125 156 187 249
puncture resistance ASTM 04833 N 240 320 400 480 640
environment stress cracking resistance ASTM 05397 hr 300 300 300 300 300
carbon black content ASTM 0 1603 % 2-3 2-3 2-3 2-3 2-3
oxidation induction time (OIT) ASTM 03895 minute 100 100 100 100 100
low temperature
(-70'C)impact brittle
ASTM 02136   pass pass pass pass pass
stream hydraulic conductivity   g.cm/(cm².s.Pa),
max.
1x10¯13 1x10¯13 1x10¯13 1x10¯13 1x10¯13
dimension stability after 2 storge 1 h/100'C ASTM 0 1204 %.max 2 2 2 2 2





Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm 0

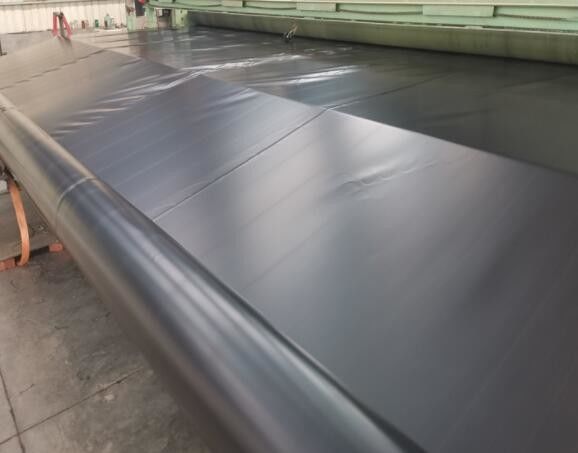

 HCNS Manufacture

Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm 1



Exhibition                                                                   Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm 2

Our Certificates and HDPE Geocell Testing reports

Waterproofing Plastic PVC HDPE Geomembrane Sheet Liner 2mm 3
