Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile

Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile
Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile

Large Image :  Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: Geogrids
Payment & Shipping Terms:
Minimum Order Quantity: 5000 Square Meter
Price: Negotiation
Packaging Details: White or Yellow tape. We provide OEM mark
Delivery Time: 7 -15days
Payment Terms: T/T, L/C
Supply Ability: 10000suqre Mater/Day
Contact Now

Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile

Description
Material: PP PET Project Solution Capability: Graphic Design, 3D Model Design, Others
Application:: Basement, Road Construction .mine Laneway Design Style: Traditional
Product Name:: PP Biaxial Geogrid Color: Black
Origin: Anhui, China Tensile Strength: 15kn20kn25kn30kn
Highlight:

Polyethylene Soil Reinforcement Geogrid

,

Bidirectional Soil Reinforcement Geogrid

,

Bidirectional geo grid ground grid polyethylene



PRODUCT DESCRIPTION

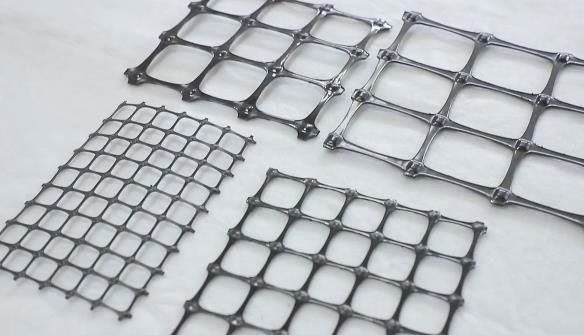

Road Mine Soft Foundation Reinforcement Bidirectional Tensile Plastic Geogrid



Product Introduction

Application:

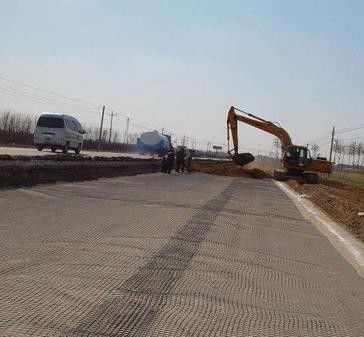

PP biaxial geogrids can be used to enhancement of permanent bearable soft including highway and railways embankment, slopes, tunnel, airport, parking lots, loaded pier and ground, their main usage are as follows:

1. Enhance the bearing capacity of road foundation and extend the duration of highway.

2. Prevent highway surface from collapse, crack and being dirty.

3. Be convenient for construction timesaving and cut down the cost of maintenance.

4. Prevent tunnel from crack occurring

5. Further solidity slopes to proof water and soil from losses

6. Reduce the surface thickness of the ground.



Specifications



Specification Index Unit TGSG15-15 TGSG20-20 TGSG25-25 TGSG30-30
MD CMD MD CMD MD CMD MD CMD
Ultimate tensile strength KN/m 15 15 20 20 25 25 30 30
tensile strength @2% strain KN/m 5 5 7 7 9 9 11 11
tensile strength @5% strain KN/m 7 7 14 14 17 17 21 21
junction efficiency % 100 100 100 100
flexural stiffness mg-cm 280,000 780,000 840,000 900,000
aperture stability kg-cm/deg 3.1 4.8 4.5 4.3
resistance to installation damage %SC/%SW/%GP 95/93/90 95/93/90 95/93/90 95/93/90
Resistance to long term degradatíon % 100 100 100 100
Unit weight g/m2 250-310 270-330 310-370 340-420

rolls dimensions

(Iength , width)

 m 50*3.9 50*3.9 50*3.9 50*3.9
loading capacity rolls/40HC 205 185 140 122



Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile 0
 HCNS Manufacture

Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile 1



Exhibition Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile 2

Our Certificates and HDPE Geocell Testing reports

Soft Foundation Soil Reinforcement Geogrid Ground Grid Polyethylene Bidirectional Tensile 3
