Product Details:
|
Material: | PP PET | Project Solution Capability: | Graphic Design, 3D Model Design, Others |
---|---|---|---|
Application:: | Basement, Road Construction .mine Laneway | Design Style: | Traditional |
Product Name:: | PP Biaxial Geogrid | Color: | Black |
Origin: | Anhui, China | Tensile Strength: | 15kn20kn25kn30kn |
Highlight: | 65x65mm fiberglass geogrid,fiberglass geogrid Mesh,30kn retaining wall grid |
PRODUCT DESCRIPTION

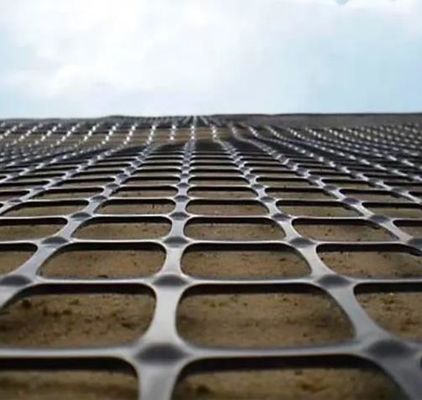

65*65mm Mesh Size PP Extruded Biaxial Geogrid 30/30kn
Product Introduction
The reinforcing action of Geomax PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost.
Specifications
Specification Index | Unit | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 |
MD CMD | MD CMD | MD CMD | MD CMD | ||
Ultimate tensile strength | KN/m | 15 15 | 20 20 | 25 25 | 30 30 |
tensile strength @2% strain | KN/m | 5 5 | 7 7 | 9 9 | 11 11 |
tensile strength @5% strain | KN/m | 7 7 | 14 14 | 17 17 | 21 21 |
junction efficiency | % | 100 | 100 | 100 | 100 |
flexural stiffness | mg-cm | 280,000 | 780,000 | 840,000 | 900,000 |
aperture stability | kg-cm/deg | 3.1 | 4.8 | 4.5 | 4.3 |
resistance to installation damage | %SC/%SW/%GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 |
Resistance to long term degradatíon | % | 100 | 100 | 100 | 100 |
Unit weight | g/m2 | 250-310 | 270-330 | 310-370 | 340-420 |
rolls dimensions (Iength , width) |
m | 50*3.9 | 50*3.9 | 50*3.9 | 50*3.9 |
loading capacity | rolls/40HC | 205 | 185 | 140 | 122 |
