Product Details:
|
| Material: | PP PET | Project Solution Capability: | Graphic Design, 3D Model Design, Others |
|---|---|---|---|
| Application:: | Basement, Road Construction .mine Laneway | Design Style: | Traditional |
| Product Name:: | PP Biaxial Geogrid | Color: | Black |
| Origin: | Anhui, China | Tensile Strength: | 15kn20kn25kn30kn |
| High Light: | PP Biaxial Soil Reinforcement Geogrid,3D Soil Reinforcement Geogrid,Biaxial geogrid for roads |
||
PRODUCT DESCRIPTION

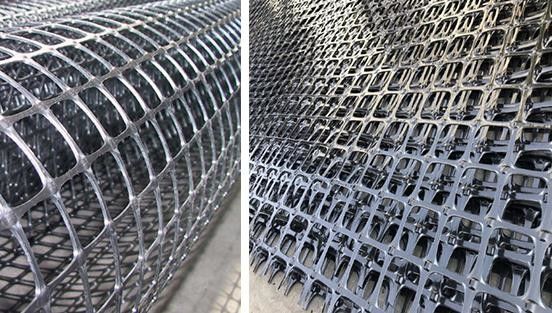

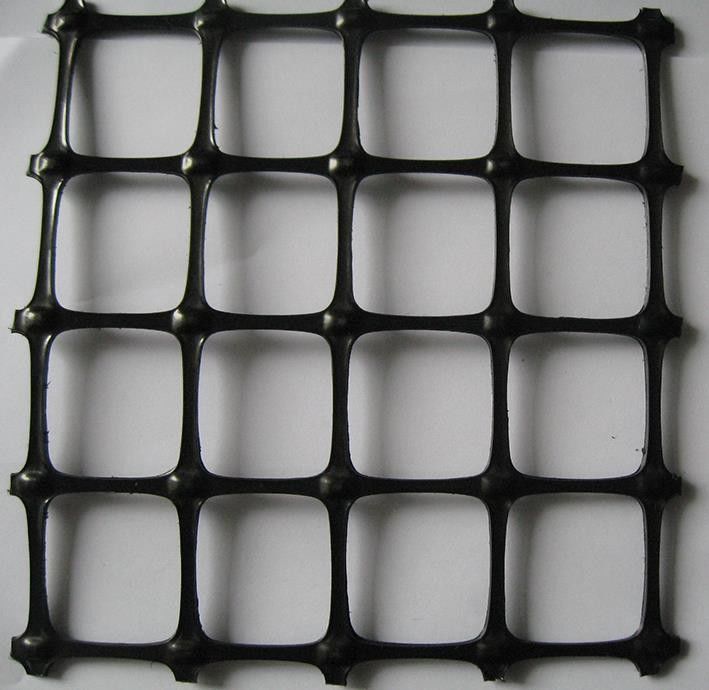

PP Biaxial Geogrid For Soil Reinforcement 20kn
Product Introduction
Geomax Biaxial Geogrid is an integrally formed structure, which especially designed for soil stabilization and reinforcement applications. Biaxial Geogrid is manufactured from Polypropylene, from the process of extruding, longitudinal stretching and transverse stretching.
Specifications
| Specification Index | Unit | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 |
| MD CMD | MD CMD | MD CMD | MD CMD | ||
| Ultimate tensile strength | KN/m | 15 15 | 20 20 | 25 25 | 30 30 |
| tensile strength @2% strain | KN/m | 5 5 | 7 7 | 9 9 | 11 11 |
| tensile strength @5% strain | KN/m | 7 7 | 14 14 | 17 17 | 21 21 |
| junction efficiency | % | 100 | 100 | 100 | 100 |
| flexural stiffness | mg-cm | 280,000 | 780,000 | 840,000 | 900,000 |
| aperture stability | kg-cm/deg | 3.1 | 4.8 | 4.5 | 4.3 |
| resistance to installation damage | %SC/%SW/%GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 |
| Resistance to long term degradatíon | % | 100 | 100 | 100 | 100 |
| Unit weight | g/m2 | 250-310 | 270-330 | 310-370 | 340-420 |
|
rolls dimensions (Iength , width) |
m | 50*3.9 | 50*3.9 | 50*3.9 | 50*3.9 |
| loading capacity | rolls/40HC | 205 | 185 | 140 | 122 |
