75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway

75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway
75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway

Large Image :  75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 7-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway

Description
Material: HDPE Type: 100-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 100
Surface: Perforated/ Textured Standard: ASTM
High Light:

75mm Geocell Ground Grid

,

Plastic Geocell Ground Grid

,

75mm gravel stabilizer grid driveway



PRODUCT DESCRIPTION

Geocell 75mm Plastic Paver Grid for Soil Stabilization Ground Gravel Geocell Price



Product Introduction

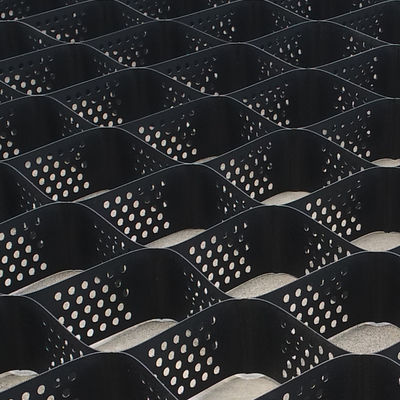

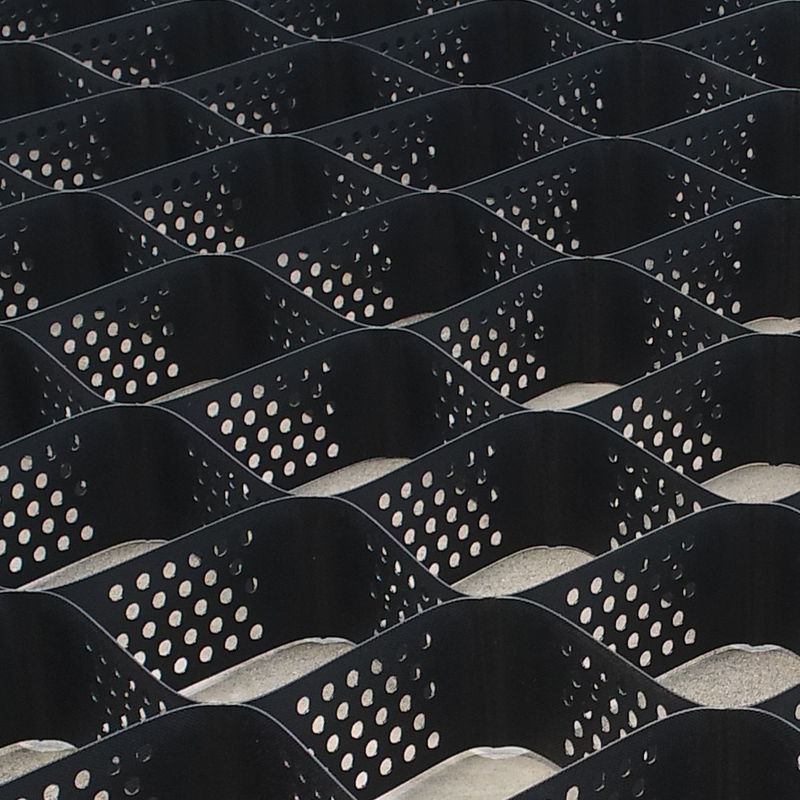

Geocell is a kind of cellular confinement system, which is also called HDPE Geocell, Geocell grid, or Geocell ground grid. It is made from HDPE (high-density polyethylene) sheets through ultrasonic welding to a 3-dimensional network structure. It is used to help improve the performance of standard construction materials and erosion control treatments. Geocell system can be filled with a wide range of materials: aggregate, concrete, sand, soil, etc.







Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 1

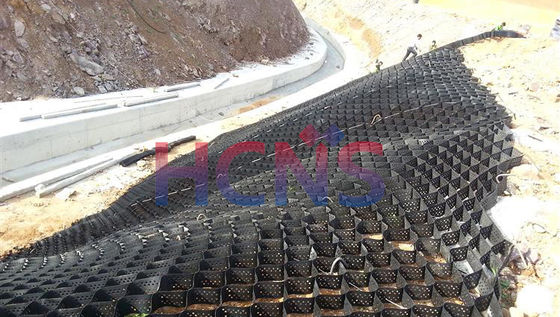

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 3

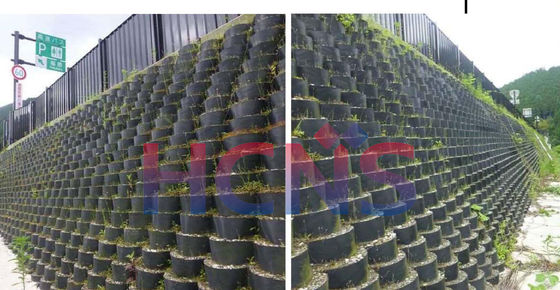

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 4

Exhibition                                                                   75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 5

Our Certificates and HDPE Geocell Testing reports

75mm Plastic Gravel Stabilizer Geocell Ground Grid Driveway 6
