Product Details:
|
Material: | HDPE | Type: | 100-356 |
---|---|---|---|
Color: | Black | Welding Space: | 356mm |
Thickness: | 1.5mm | Height: | 100 |
Surface: | Perforated | Standard: | ASTM |
Highlight: | 3D HDPE Slope Protection Geocell,356mm Slope Protection Geocell,356mm driveway gravel stabilizer |
PRODUCT DESCRIPTION

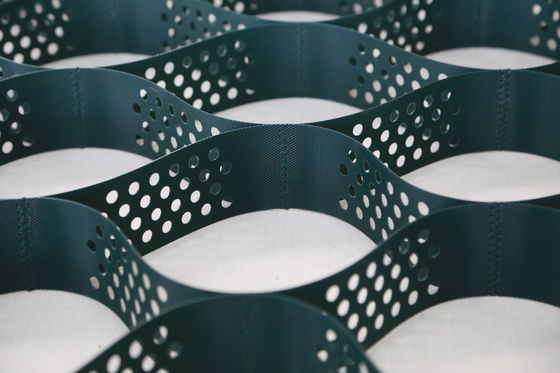

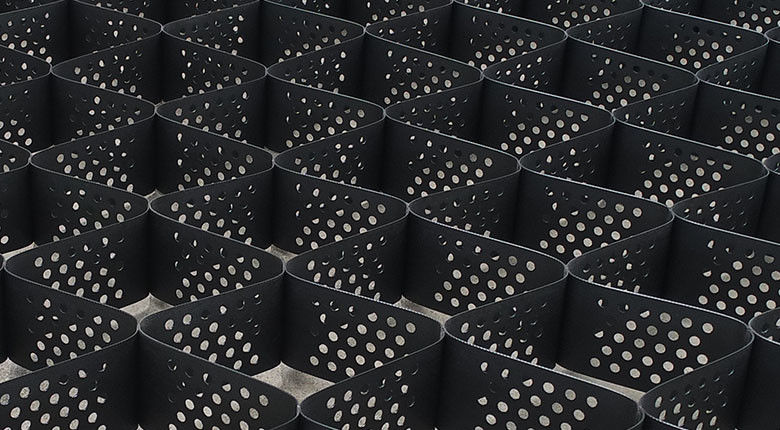

Stable Gravier Retaining Wall 3D HDPE Geocell Slop Protection
Product Introduction
Slope embankments gain reliable security with less expensive aggregate when you pair them with Geomax geocell. You can reduce project costs by using gravel and crushed stones rather than gabion options that call for large stones.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
