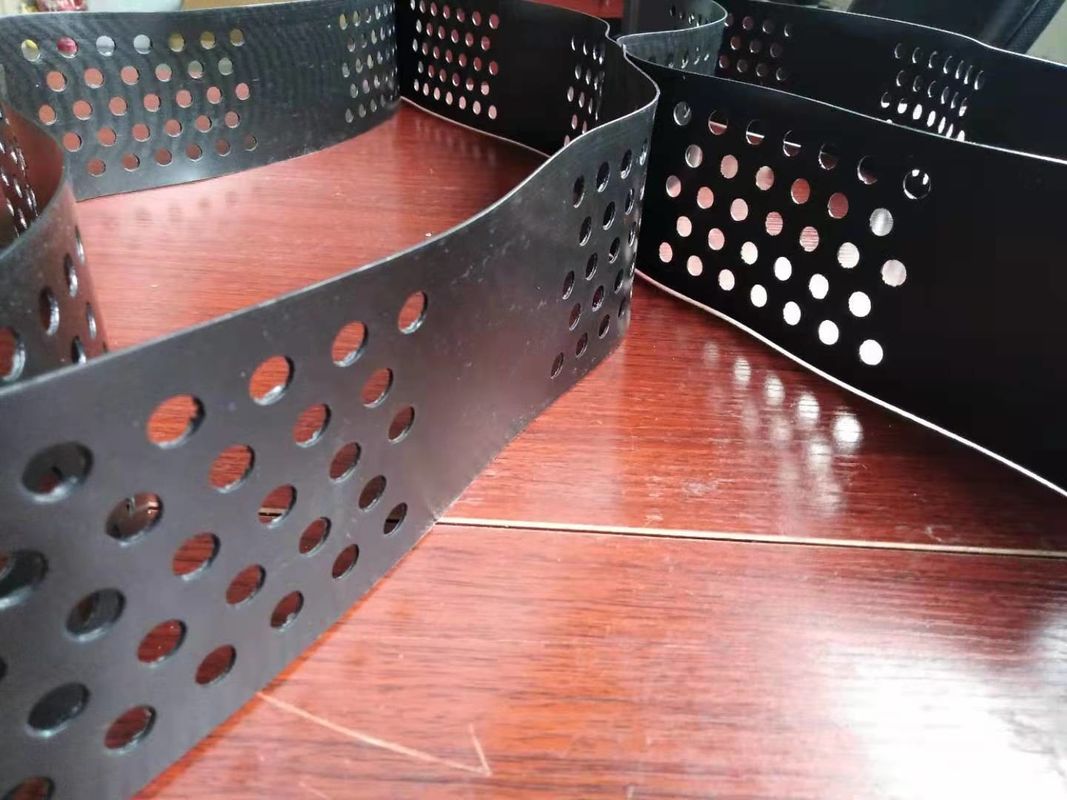

Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell

Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell
Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell

Large Image :  Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-356
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 7-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell

Description
Material: HDPE Type: 100-356
Color: Black Welding Space: 356mm
Thickness: 1.5mm Height: 100
Surface: Perforated Standard: ASTM
High Light:

Black Perforated Slope Protection Geocell

,

Subgrade Slope Protection Geocell

,

custom black perforated geocell Subgrade



PRODUCT DESCRIPTION

Road Construction Subgrade Stabilization Slop Protection HDPE Geocell



Product Introduction

Product name: geocell

Main Material: HDPE
Height: 75mm, 100mm, 150mm, 200mm, or can be customized.
Welding distance: 330mm, 356mm,432mm, 445mm,600mm, 660mm, 712mm, or can be customized.







Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 0

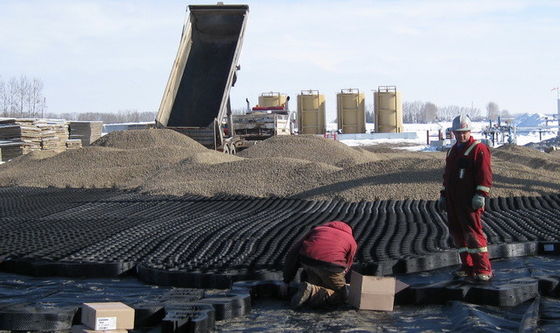

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 4

Exhibition                                                                   Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 5

Our Certificates and HDPE Geocell Testing reports

Road Construction Subgrade Slope Protection Geocell Custom Black Perforated Geocell 6
