Driveway Gravel Stabilizer HDPE Geocell Ground Reinforcement Cellular System Gravel Grid

Large Image : Driveway Gravel Stabilizer HDPE Geocell Ground Reinforcement Cellular System Gravel Grid

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	CE
Model Number:	100-330

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	2000㎡ per day

Contact Now

Driveway Gravel Stabilizer HDPE Geocell Ground Reinforcement Cellular System Gravel Grid

Description

Material:	High-density Polyethylene (HDPE)	Type:	100-330
Color:	Black	Welding Space:	712mm
Thickness:	1.5mm	Height:	100
Surface:	Smooth Textured Perforated	Standard:	ASTM
High Light:	Ground Reinforcement Cellular System Gravel Grid , Driveway Gravel Stabilizer HDPE Geocell , Cellular System HDPE Geocell

PRODUCT DESCRIPTION

Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer Geocell HDPE Green Black

Product Introduction

Description:

Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, appliedto different geological conditions, such as saline soil, desert, etc.2.Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
Size is relatively stable, change the height and welding distance can meet the needs of different projects.
Retractile, easy to transport.
Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
Can be used repeatedly.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

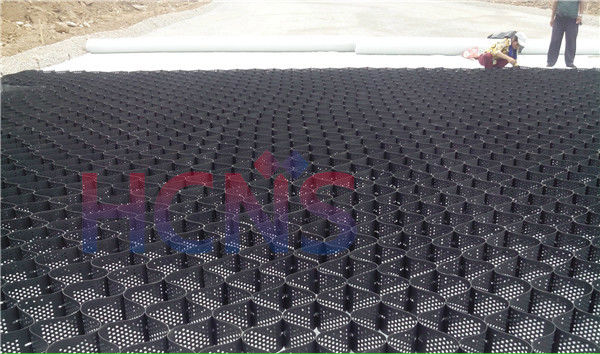

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

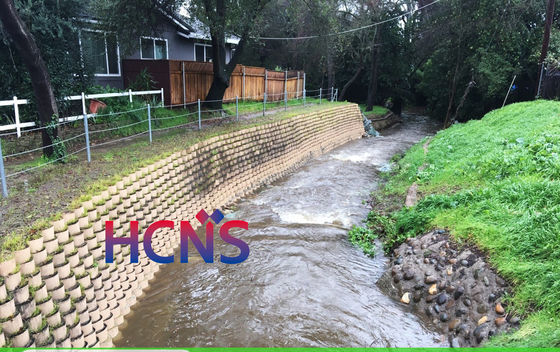

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
