Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway

Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway
Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway

Large Image :  Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 100-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway

Description
Material: High-density Polyethylene (HDPE) Type: 100-330
Color: Black Welding Space: 712mm
Thickness: 1.5mm Height: 100
Surface: Smooth Textured Perforated Standard: ASTM
High Light:

Earthwork Gravel Grid Geocell

,

Landscaping Gravel Grid Geocell

,

HDPE Honeycomb Geocell



PRODUCT DESCRIPTION

Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway



Product Introduction

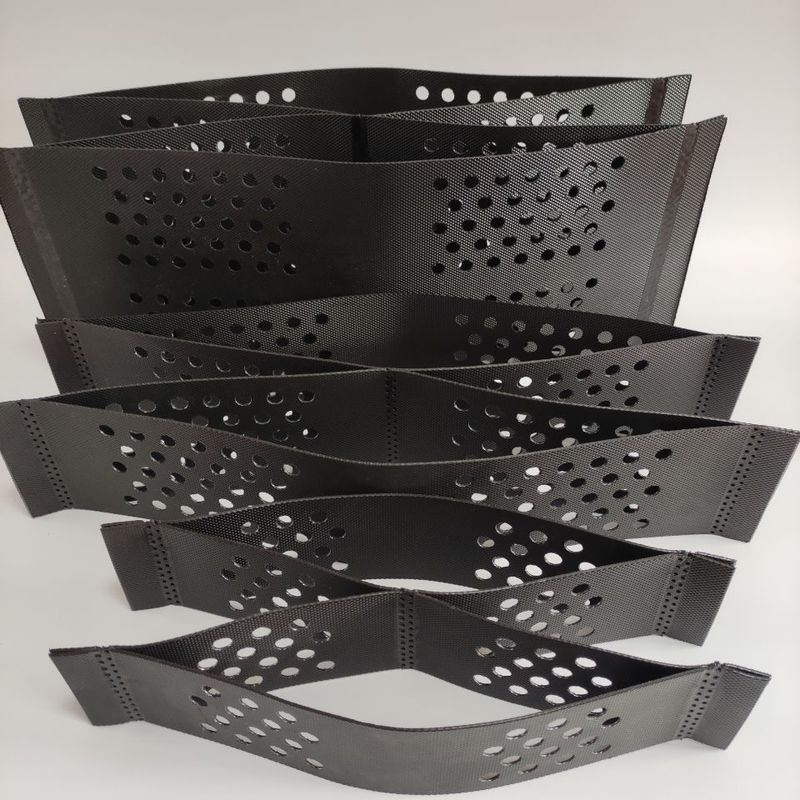

Geocell is a net structure cell structure formed by high strength high-density polyethylene broadband and strong welding. It is flexible and can be folded during transportation. When used, it can be stretched and filled with earth rock or concrete materials to produce a structure with strong side restrictions and large stiffness. It can be used as a cushion to deal with the soft foundation to increase the bearing capacity of the foundation. It can also be paved on the slope to produce slope protection structures, and be used to build retaining structures.





Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 1

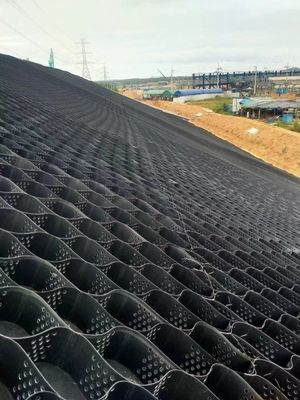

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 4                                                                                     Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 5



Our Certificates and HDPE Geocell Testing reports

Landscaping Gravel Grid Geocell Supplier For Earthwork And Driveway 6
