1.5mm HDPE Geocell Seam Peel Strength ≥14.2 Plastic Wall Strengthening

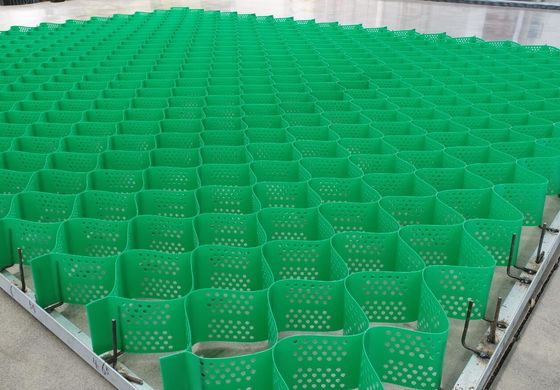

Large Image : 1.5mm HDPE Geocell Seam Peel Strength ≥14.2 Plastic Wall Strengthening

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	CE
Model Number:	100-356

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	2000㎡ per day

Contact Now

1.5mm HDPE Geocell Seam Peel Strength ≥14.2 Plastic Wall Strengthening

Description

Material:	High-density Polyethylene (HDPE)	Type:	100-356
Color:	Black	Welding Space:	356mm
Thickness:	1.5mm	Height:	100
Surface:	Smooth Textured Perforated	Standard:	ASTM
High Light:	Textured Wall Geocell Gravel Grid , Plastic Wall Strengthening HDPE Geocell , HDPE Geocell 1.5mm

PRODUCT DESCRIPTION

HDPE Geocell Seam Peel Strength ≥14.2 Plastic Wall Strengthening

Product Introduction

Geocell is a three-dimensional mesh cell structure formed by high-strength HDPE copolymer broadband through strong welding, ultrasonic welding, riveting, and buckle. The geocell can be flexibly retracted, and the foldable packaging is convenient for transportation and saves transportation costs.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

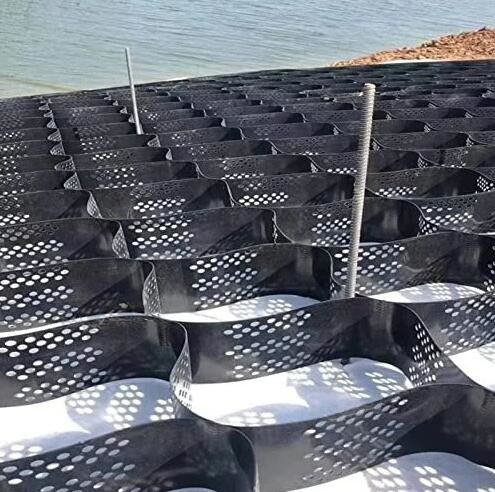

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture

Our Certificates and HDPE Geocell Testing reports

1.5mm HDPE Geocell Seam Peel Strength ≥14.2 Plastic Wall Strengthening 6
