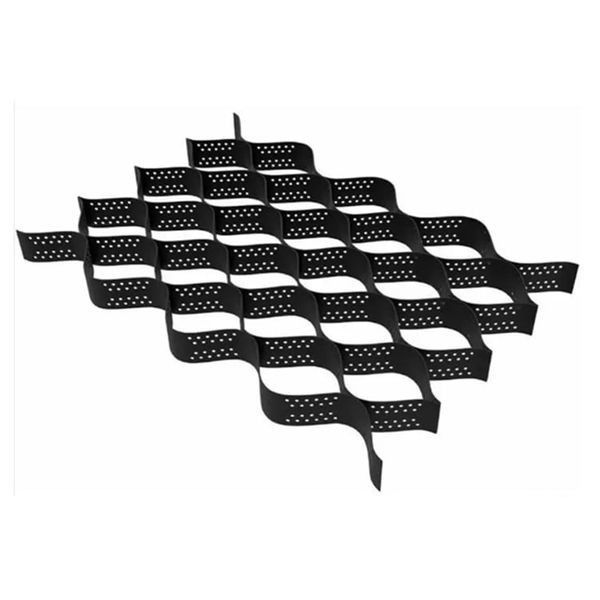

Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell

Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell
Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell
Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell

Large Image :  Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-500
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell

Description
Material: High-density Polyethylene (HDPE) Type: 150-500
Color: Black Welding Space: 500mm
Thickness: 1.5mm Height: 150
Surface: Smooth Textured Perforated Standard: ASTM
High Light:

Stabilizer Geocell Ground Grid

,

Road Strong Flexible HDPE Geocell

,

Smooth Geocell Ground Grid



PRODUCT DESCRIPTION

Stabilizer Geocell Ground Grid For Road Strong Flexible Hdpe Geocell



Product Introduction

  • Compared to traditional construction methods, Geomax HDPE Geocells are a cost-effective and sustainable solution, enabling significant cost and CO2 emission savings, by reducing construction depth and granular infill importation by approximately 50%.




Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 0

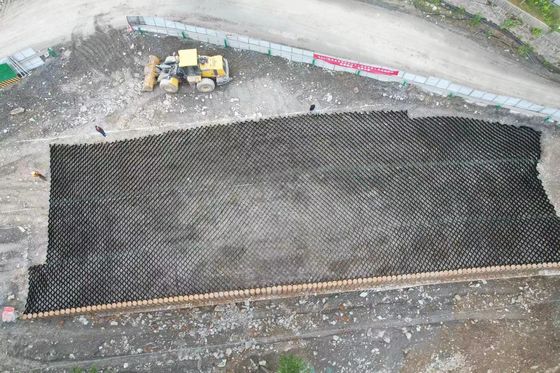

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 4                                                                                     Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 5



Our Certificates and HDPE Geocell Testing reports

Stabilizer Geocell Ground Grid For Road Strong Flexible HDPE Geocell 6
