Product Details:
|
| Material: | High-density Polyethylene (HDPE) | Type: | 150-445 |
|---|---|---|---|
| Color: | Black | Welding Space: | 445mm |
| Thickness: | 1.5mm | Height: | 150 |
| Surface: | Smooth Textured Perforated | Standard: | ASTM |
| High Light: | Smooth HDPE Geocell Grid,HDPE Geocell Grid 330mm,Honeycomb HDPE Geocell Ground Grid |
||
PRODUCT DESCRIPTION
HDPE Geocell Grid 330-1600mm Welding Space 100% Virgin Material
Product Introduction

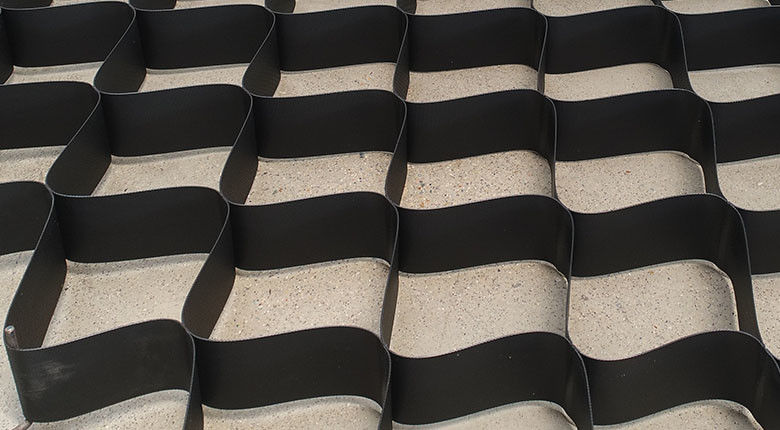

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
Our Certificates and HDPE Geocell Testing reports
