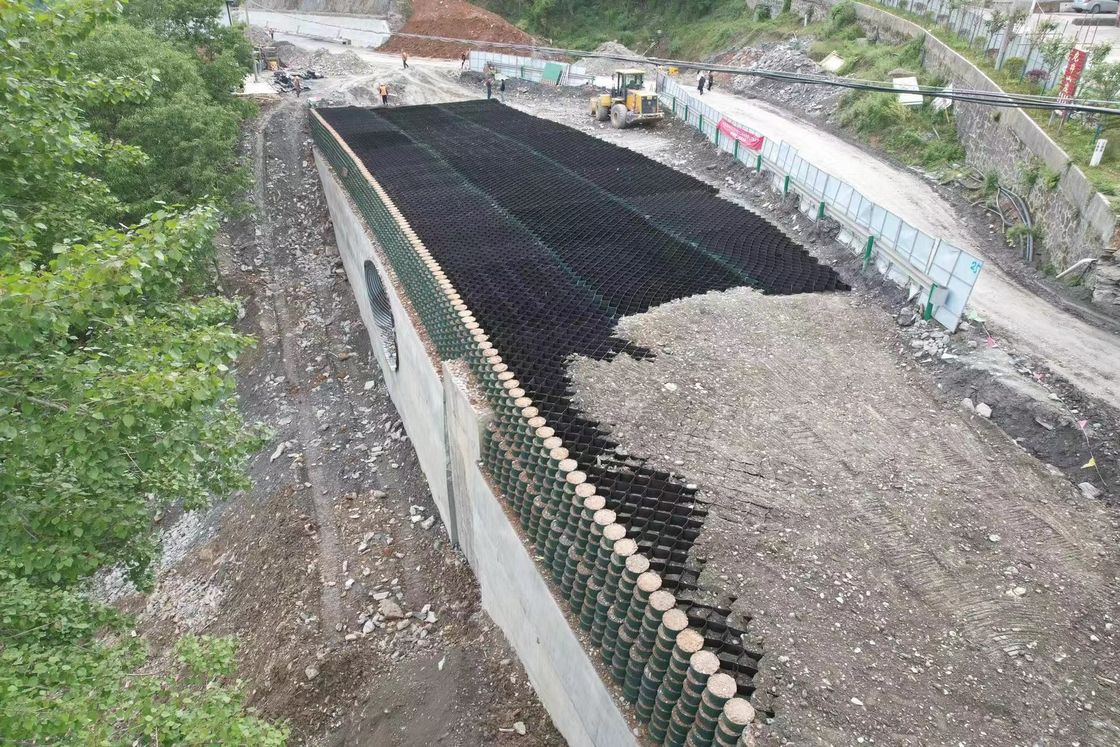

Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction

Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction
Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction
Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction

Large Image :  Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction

Description
Material: High-density Polyethylene (HDPE) Type: 150-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 150
Surface: Smooth Textured Perforated Standard: ASTM
Highlight:

Geocell Ground Grid 1.5mm

,

HDPE Soil Stabilization Geocell Ground Grid

,

Road Construction HDPE Geocell Gravel Grid



PRODUCT DESCRIPTION

Geocell Gravel Grid Hdpe Soil Stabilization Ground Geocells In Road Construction



Product Introduction

Geocell is made of a new type of high-strength geosynthetics, which is popular with both domestic and abroad, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation.Easily folding and convenient for transportation.







Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





 Application



Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



HCNS Manufacture                                                                                                                                  Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 4                                                                                     Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 5



Our Certificates and HDPE Geocell Testing reports

Geocell Gravel Grid HDPE Soil Stabilization Geocell Ground Grid In Road Construction 6
