Product Details:
|
| Material: | HDPE | Type: | 150-445 |
|---|---|---|---|
| Color: | Black | Welding Space: | 445mm |
| Thickness: | 1.5mm | Height: | 150 |
| Surface: | Perforated | Standard: | ASTM |
| High Light: | Slope Protection Geo Cell Grid,Plastic Sheet HDPE Geocell,Textured HDPE Geocell 1.5mm |
||
PRODUCT DESCRIPTION

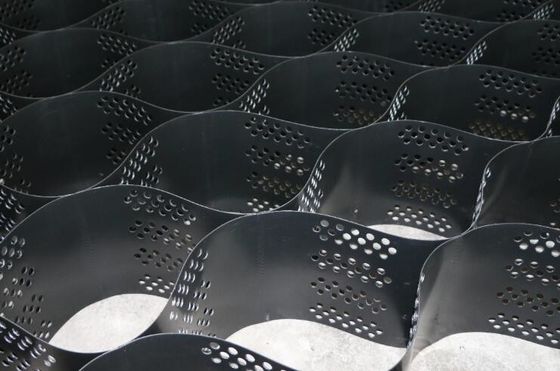

Plastic Sheet Textured And Perforated HDPE Geocells For Slope Protection
Product Introduction
It is flexible to fold during the transport and installation on construction site. The geocell nets
will be filled with soils, granular, cements or other on-site infill materials when stretched into
web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Material is qualitative light, wear resistance, chemical stability, light oxygen aging resistance,
resistance to acid and alkali;Suitable for different soil and soil conditions, such as desert.
Higher lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing
capacity of subgrade and scattered loads.
Change the large room height, welding such as geometrical size can meet different engineering needs.
Retractile, transport of small size; Connection is convenient, fast construction speed.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |

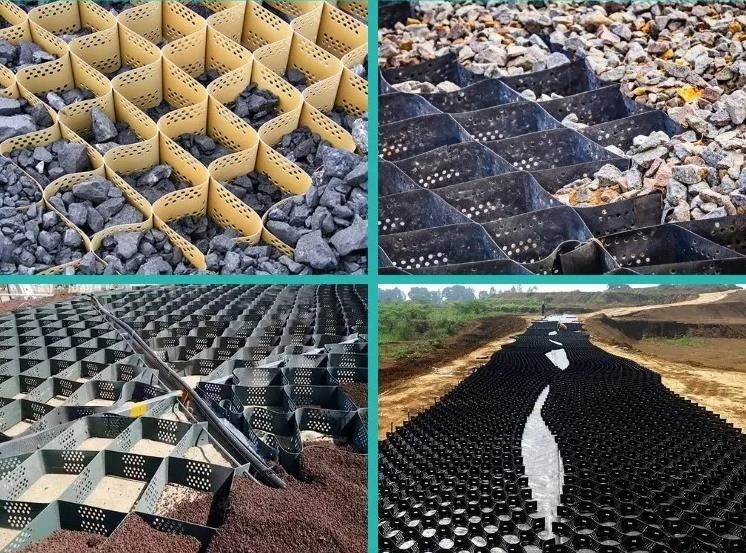

SOIL REINFORCEMETNGeomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
