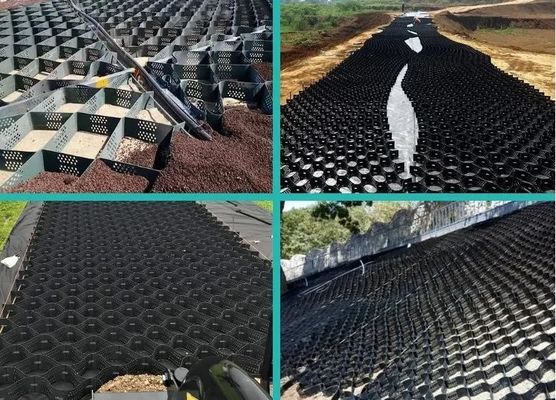

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection
Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection

Large Image :  Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-660
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection

Description
Material: HDPE Type: 150-660
Color: Black Welding Space: 660mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM
Highlight:

Flexible Plastic HDPE Geocell

,

Driveway Grid Gravel Geocell

,

Slope Protection Geocell 1.5mm



PRODUCT DESCRIPTION

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection



Product Introduction

Geocell is also called "cellular confinement systems" academically .It is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or PP and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.
Geocell strip widths, hence the on-site height, come in various sizes from 50 to 300 mm. Geocell walls are usually made from textured or structured polymer sheet so as to increase frictional resistance against the infill soil from displacement. Geocell are made of HDPE, PP, low-density polyethylene and nonwoven heat-bonded geotextiles. Geocell walls are typically perforated so as to allow for drainage from one cell to another. On steep slopes Geocell may have a tendon or cable extending through the central region up the slope and anchored to, or within, a concrete plinth so as to resist downgradient sliding of the system. The backfilling of Geocell on long and wide slopes is quite labor-intensive. Construction equipment called phneumatic sand-slingers or stone-slingers have been used advantageously.




Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

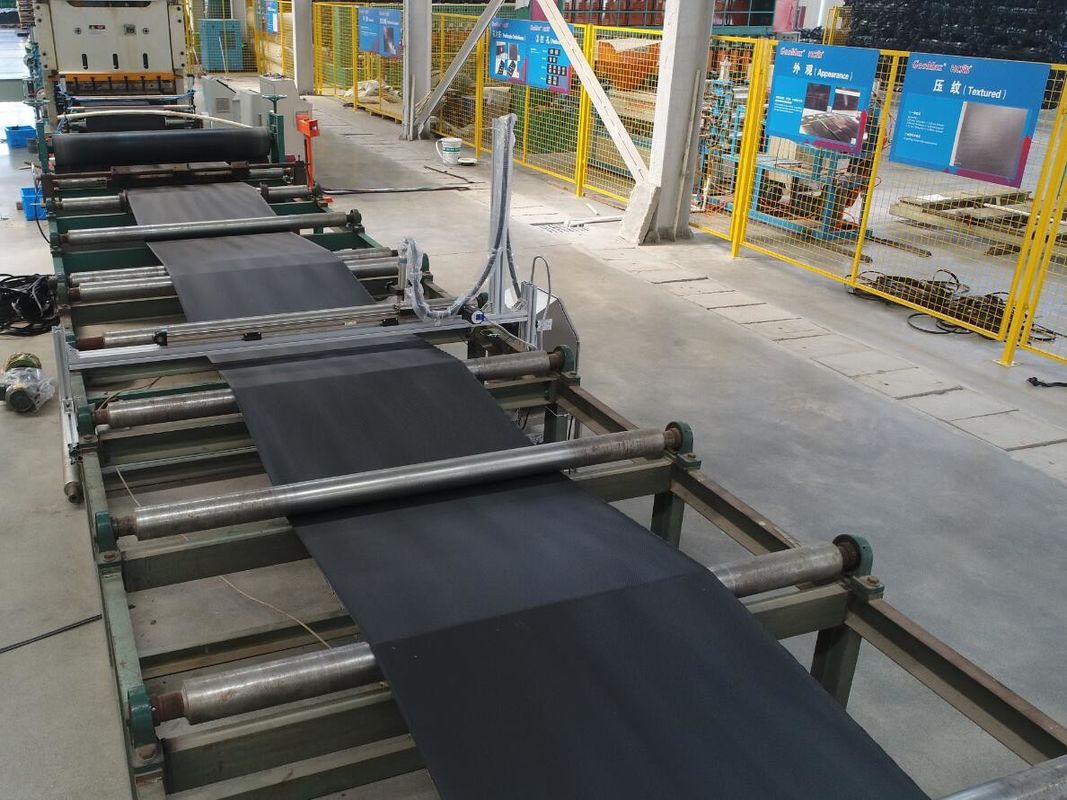

                                                                                                      HCNS Manufacture

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 4

Exhibition                                                                   Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 5

Our Certificates and HDPE Geocell Testing reports

Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slop Protection 6
