Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave
Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

Large Image :  Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-660
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave

Description
Material: HDPE Type: 150-660
Color: Black Welding Space: 660mm
Thickness: 1.5mm Height: 150
Surface: Perforated Standard: ASTM
High Light:

Stabilization HDPE Geocell

,

Retaining Walls Protection HDPE Geocell

,

Grass Pave Geocell Gravel Grid



PRODUCT DESCRIPTION

Hdpe Geocell Retaining Walls Geocell Grass Pave Made In China



Product Introduction

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of
standard construction materials and erosion-control treatments.
Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material.
When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure
into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in
place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.




Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 0

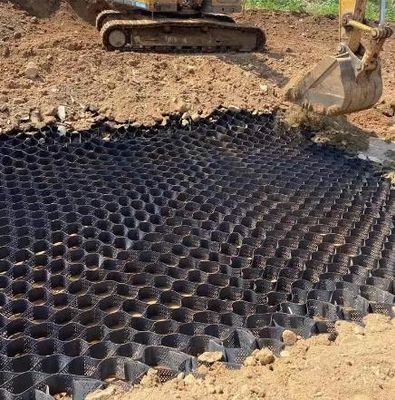

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 4

Exhibition                                                                   Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 5

Our Certificates and HDPE Geocell Testing reports

Retaining Walls Protection And Stabilization HDPE Geocell Grass Pave 6
