Product Details:
|
Material: | HDPE | Type: | 200-445 |
---|---|---|---|
Color: | Black | Welding Space: | 445mm |
Thickness: | 1.5mm | Height: | 200 |

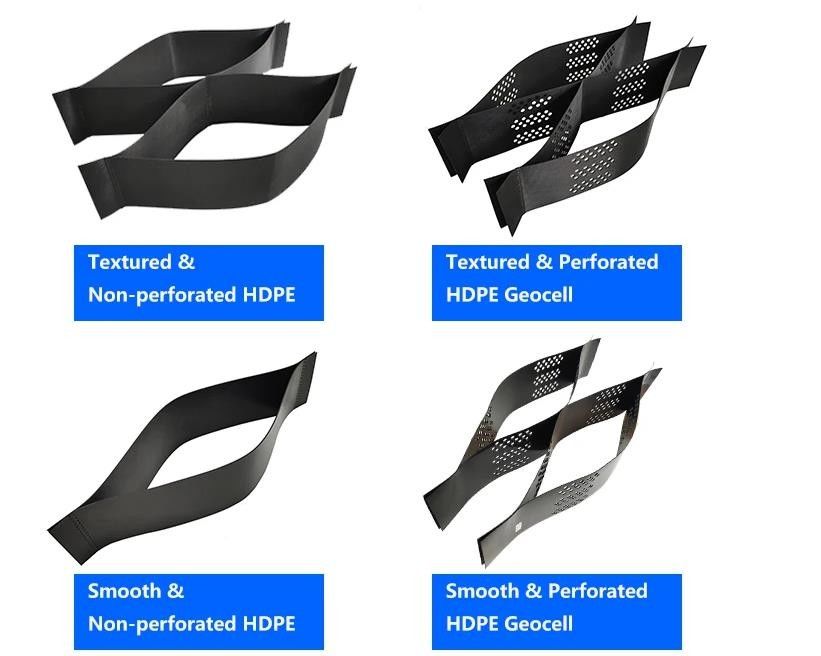

Surface: | Perforated | Standard: | ASTM |
Highlight: | 200mm Geotextile Geocell,Geotextile Gravel Paver Grid,HDPE Geocell 100mm |
PRODUCT DESCRIPTION
Geocell geotextile gravel paver grid 100mm 200mm geocell price for retaining walls
Product Introduction
Geocell confinement system is made of high-density polyethylene, it is lightweight, so very easy to carry by human power, no need any heavy machinery. In addition, since it is delivered in a compactly folded state, so it does not require a large space for storage.
The construction method is easy, after hitting an anchor, the geocell can be deployed, filled with filling material, and compacted repeatedly. In addition, since foundation concrete is not required, it also contributes to shortening the construction period.
Due to the flexibility of the material, it demonstrates excellent followability even on undulating sites and can easily handle curved sections.
Since various filling materials such as locally generated soil, crushed stone, recycled concrete, and improved soil can be used depending on the situation, it also contributes to the reduction of residual soil transportation costs.
Since the setback part is a flat surface, it is easy to vegetate using the filling material, so it is excellent in landscape.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
|
|
|
|
