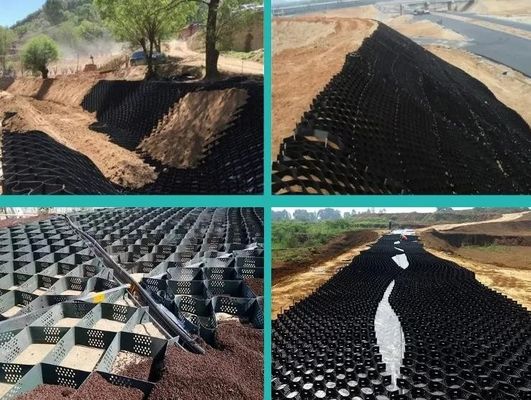

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement
ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement

Large Image :  ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 200-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement

Description
Material: HDPE Type: 200-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 200
Surface: Perforated Standard: ASTM
High Light:

HDPE Textured Geocell

,

ASTM Perforated HDPE Geocell

,

Road Reinforcement HDPE Geocell



PRODUCT DESCRIPTION

ASTM Standard HDPE Textured/Perforated Geocells For Slope/Retaining Wall/Road Reinforcement



Product Introduction

HDPE Geocell
Geocell is a net-shapped cell structure made by welding high intensity thermoplastic sheet
Features
It is flexible to fold during transportation stretching out and being filled with stone or concrete during service and forming into structure with powerf




Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









Application



ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 0

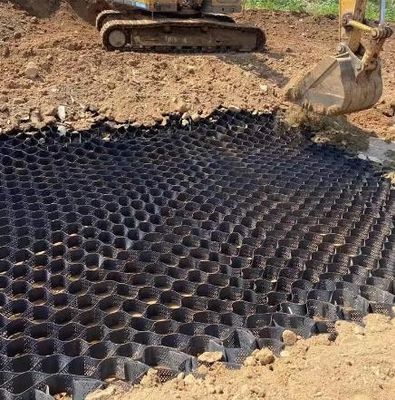

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 4

Exhibition                                                                   ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 5

Our Certificates and HDPE Geocell Testing reports

ASTM Standard HDPE Textured / Perforated Geocells For Slope / Retaining Wall / Road Reinforcement 6
