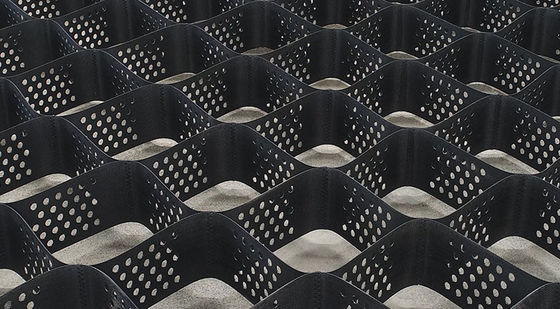

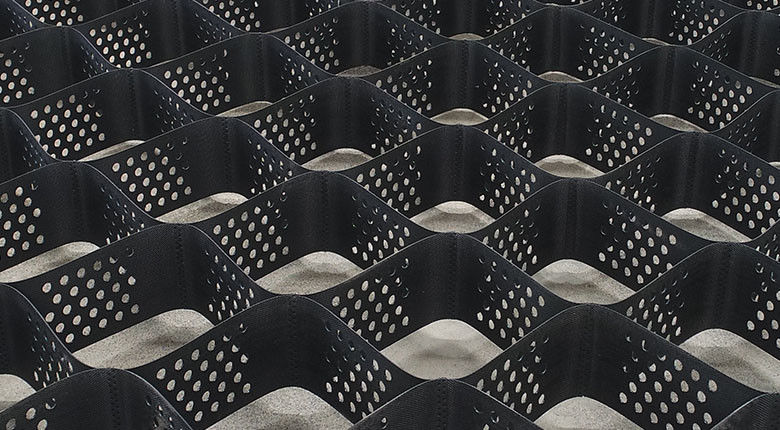

Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls

Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls
Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls

Large Image :  Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 200-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls

Description
Material: HDPE Type: 200-445
Color: Black Welding Space: 445mm
Thickness: 1.5mm Height: 200
Surface: Perforated Standard: ASTM
High Light:

Plastic Driveway HDPE Gravel Grid Geocells

,

Road HDPE Gravel Grid Geocells

,

Retaining Walls Geocell HDPE



PRODUCT DESCRIPTION

Plastic Driveway Hdpe Gravel Grid Geocells For Road Soil Stabilization Geocell Retaining Walls



Product Introduction

GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc. Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and storm water control in channels.




Specifications



Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

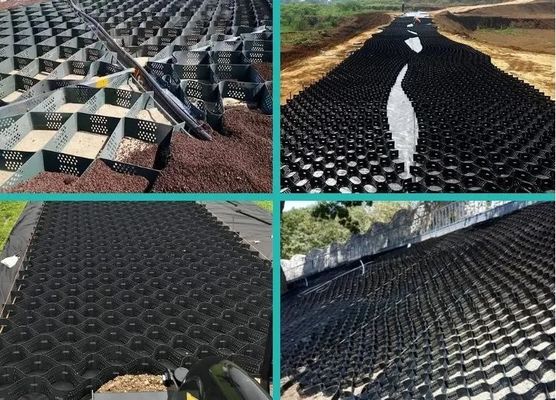

Application



Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

                                                                                                      HCNS Manufacture

Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 4

Exhibition                                                                   Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 5

Our Certificates and HDPE Geocell Testing reports

Plastic Driveway HDPE Gravel Grid Geocells For Road Soil Stabilization Retaining Walls 6
