Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer
Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer

Large Image :  Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 150-356
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer

Description
Raw Material: HDPE Geoweb Type: 150-356
Color: Black Welding Space: 356mm
Geoweb Thickness: 1.25mm Height: 150
Surface: Perforated Standard: ASTM

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer





Product Introduction

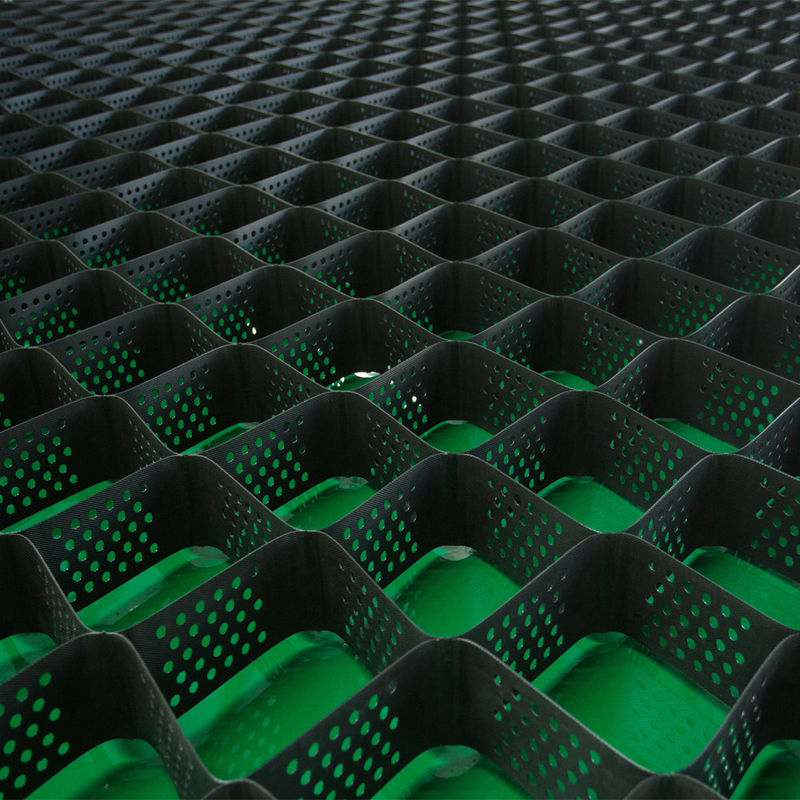

Hdpe Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Hdpe Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Hdpe Geocell improve the structural and functional behavior of soils and aggregate infill materials.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 1

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 4



INVENTION AND TESTING

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 5



PRODUCT AREA

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 6



CERTIFICATES

Hdpe Geocell Geo Cell Ground Enhancement Cellular System Gravel Grid Driveway Gravel Stabilizer 7
