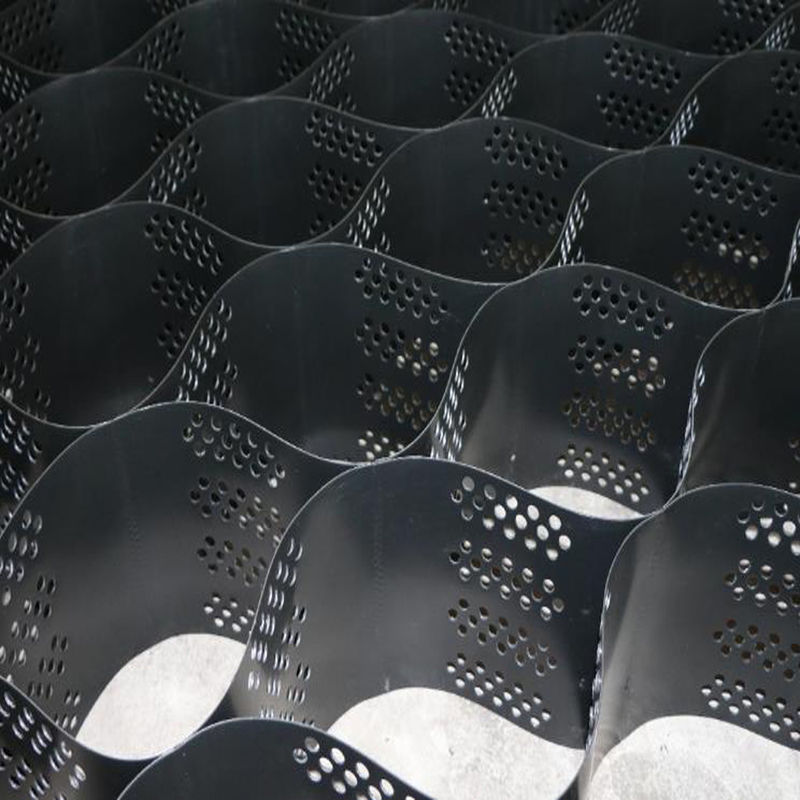

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm
High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm

Large Image :  High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-150-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm

Description
Raw Material: HDPE Geocell Standard: ASTM
Height: 150 Geocell Type: 150-330
Geocell Color: Black Or Yellow Geocell Welding Space: 330mm
Thickness: 1.5mm Surface: Textured

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm





Product Introduction

HDPE Geocell confines and stabilizes weak soils by creating a honeycomb of interconnected polymer strips that form pockets to locate and strengthen the infill material.It can be laid over stable steep slopes where the hdpe geocell walls provide a tensile force increasing the strength of the material and acting as mini-weirs to significantly reduce runoff velocity and soil loss. On a slope HDPE geocell is normally secured to the underlying material with steel pins.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

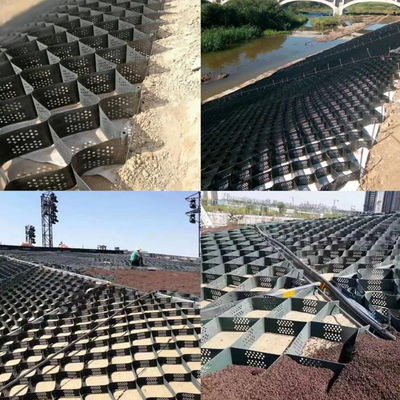

APPLICATION

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 0

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 1

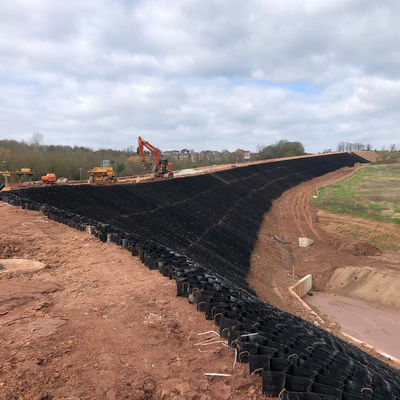

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 2

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 3

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 4



INVENTION AND TESTING

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 5



PRODUCT AREA

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 6



CERTIFICATES

High Strength HDPE Geocell Grass Planting Slope Protection Honeycomb 330mm 7
