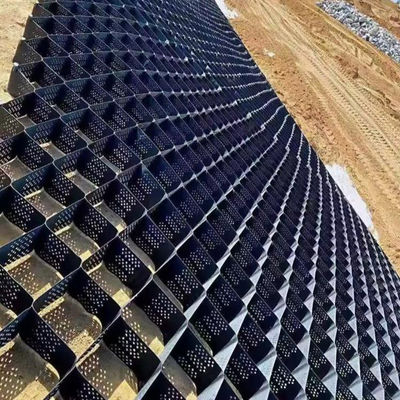

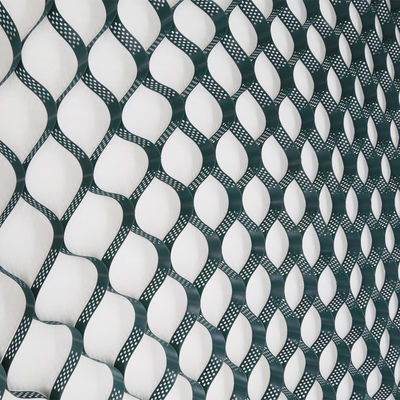

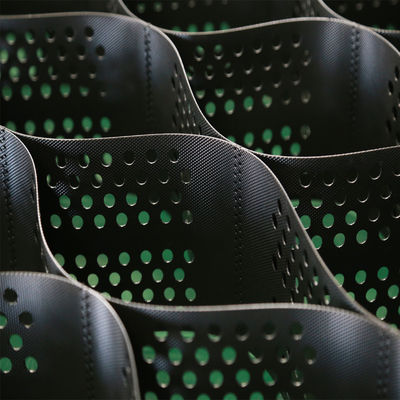

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell
445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell

Large Image :  445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.27-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell

Description
Geocell Material: High Density Polyethylene Standard: ASTM Or GB/T
Height: 100 Geocell Model: 100-445
Hdpe Geocell Color: Black Or Customized Welding Space: 445mm
Geocell Thickness: 1.27mm Surface: Perforated
Highlight:

445mm Size HDPE Geocell

,

1.27mm Thickness Slope Protection Geocell

,

445mm Flexible Plastic Geocell

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell





Product Introduction

Hdpe Geocell has the ability to expand and contract, and can be retracted and stacked during transportation, and can be stretched into a network during construction, and filled with loose materials such as soil, gravel, concrete, etc., to form a structure with strong lateral restriction and large stiffness.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 4



INVENTION AND TESTING

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 5



PRODUCT AREA

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 6



CERTIFICATES

445mm Flexible Plastic HDPE Black Driveway Grid Gravel Geocell For Slope Protection Geocell 7
