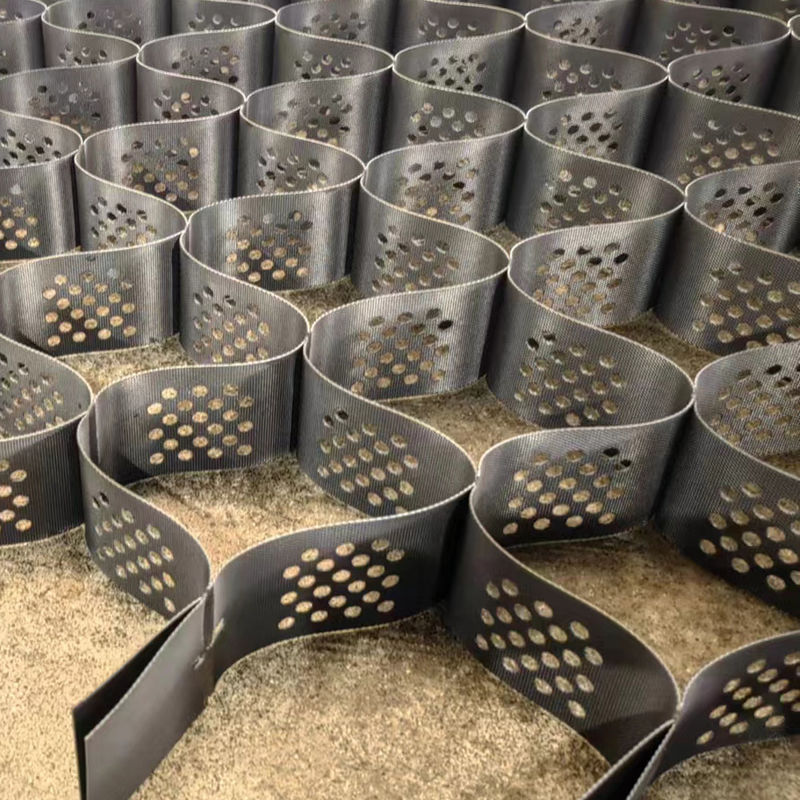

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured
Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured

Large Image :  Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-75-356
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-200mm Geomax Model: GM356
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 330-712mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Honeycomb Geocell 75mm

,

Driveway Road Geocell

,

Soil Stabilization Geocell

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured Geocell Supplier





Product Introduction

Function
Stabilization and reinforcement.

Salient Features
A cost-effective alternative in the construction industry.
Increased overall structural strength.
Better bearing capacity.
Wider stress distribution.
Reduced permanent deformation.
It prolongs the life of the structures, whether roadways or railways.
Highly sustainable and profitable is perhaps its foremost salient feature.
Quick and easy installation.
Eco-friendly soil stabilization solution.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

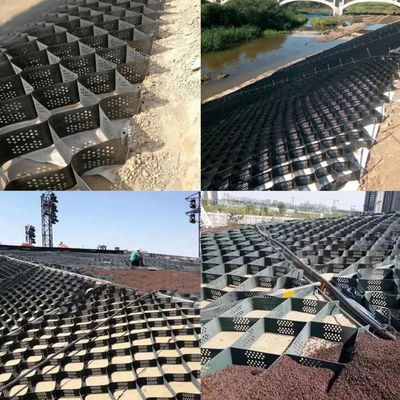

APPLICATION

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 1

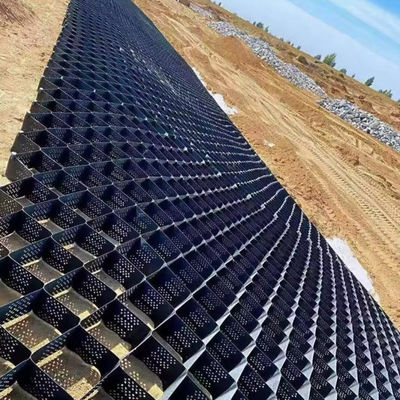

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 4



INVENTION AND TESTING

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 5



PRODUCT AREA

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 6



CERTIFICATES

Honeycomb Geocell 75mm For Soil Stabilization Driveway Road Basement Textured 7
