Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-200mm | Geomax Model: | GM500 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 330-712mm |
Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | 330-712mm HDPE Geocell,Textured Perforated Slope Protection Geocell,Gravel Grid Geocells |

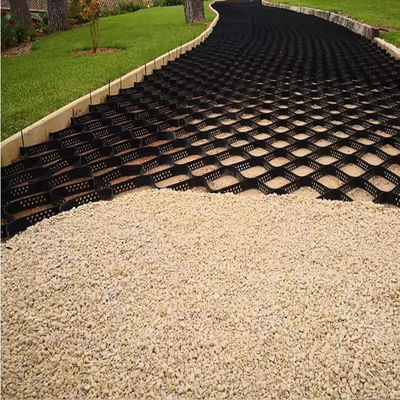

Slop Protection Geocell Driveway 330-712mm HDPE Geocell Gravel Grid Geocells
Product Introduction
Hdpe Geocell forms a new composite solid soil when filled with compacted soil, and the mechanical and geotechnical properties that can be enhanced by the hdpe geocell. When the soil in the geocell is under pressure, as in the case of a load support application, the hdpe geocell can create lateral stresses on the perimeter cell walls. The 3D confinement area reduces the lateral movement of the soil particles, while the vertical load on the included fill results in high lateral stresses and resistance at the cell soil interface. These increase the shear strength of the confined soil, creating a hard soil or slab to spread the load over a wider area. Hdpe Geocell reduces punching shear in soft soils, increases shear strength and load-bearing capacity, and reduces soil deformation. The restriction of the adjacent geocell provides additional resistance against the load hdpe geocell through passive resistance, while the lateral expansion of the infill is limited by the high hoop strength. Compaction is maintained by restraint for long-term reinforcement.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
