Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-200mm | Geomax Model: | GM500 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 330-712mm |

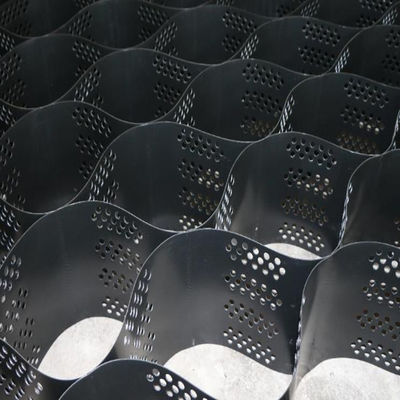

Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | 445mm HDPE Geocell,1.5mm HDPE Geocell,Road Construction HDPE Geocell |

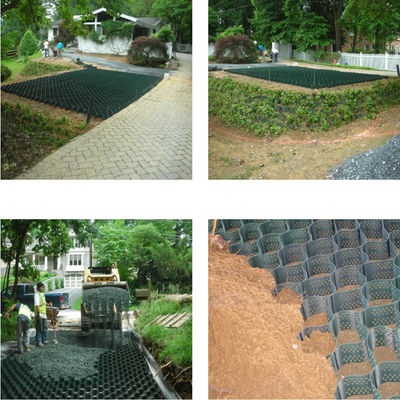

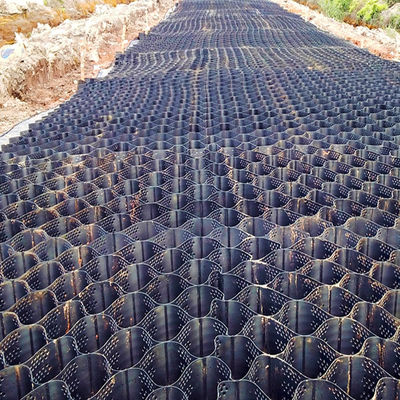

Road Construction Stabilization And Load Support Gravel Stabilizer Grid HDPE Geocell 1.5mm 445mm
Product Introduction
Geosynthetics are commonly manufactured using a variety of polymers, with high-density polyethylene (HDPE), polypropylene (PP), and polyester (PET) being the most popular choices. These polymers are selected for their exceptional resistance to chemical and biological degradation. To enhance specific properties like weathering resistance and UV resistance, manufacturers often introduce additives or modifiers into the polymer blend. In certain specialized applications demanding extraordinary strength, polymers such as aramids or polyvinyl alcohol (PVA) may be utilized. Following is the introduction of these three main materials.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
