Hdpe Geocell Used In Road Construction Plastic HDPE Geocell

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell
Hdpe Geocell Used In Road Construction Plastic HDPE Geocell Hdpe Geocell Used In Road Construction Plastic HDPE Geocell Hdpe Geocell Used In Road Construction Plastic HDPE Geocell

Large Image :  Hdpe Geocell Used In Road Construction Plastic HDPE Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-150-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-200mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Plastic HDPE Geocell

,

Slope Protection HDPE Geocell

,

Road Construction Plastic HDPE Geocell

Hdpe Geocellused In Road Construction Plastic HDPE Geocell For Slop Protection Geocell





Product Introduction

Geosynthetics have revolutionized geotechnical engineering and construction practices, offering numerous benefits and improved performance in a wide range of applications. From road construction and retaining walls to landfill liners and erosion control, geosynthetics provide stability, drainage, reinforcement, and environmental protection. By utilizing geosynthetics effectively, engineers and construction professionals can enhance the longevity, sustainability, and cost-effectiveness of their projects. As technology advances, geosynthetics continue to evolve, offering innovative solutions for the challenges faced in the geotechnical and construction industry.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

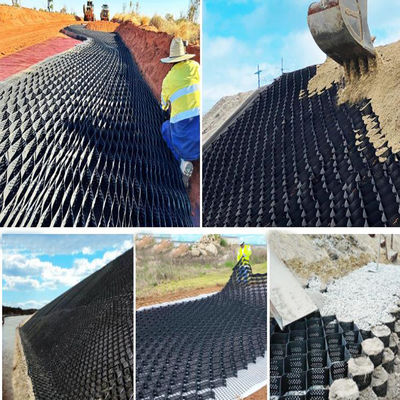

APPLICATION

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 4



INVENTION AND TESTING

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 5



PRODUCT AREA

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 6



CERTIFICATES

Hdpe Geocell Used In Road Construction Plastic HDPE Geocell 7
