Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell
Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell
Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell

Large Image :  Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-50-330
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-200mm Geomax Model: GM330
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 330mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Cellular Confinement System Geocell

,

Smooth Textured Geocell

,

Reinforced HDPE Geocell

Dam Construction Material Gravel Textured HDPE Geocell With Hole Slop Protection Geocell





Product Introduction

Hdpe geocell is a multifunctional engineering structural material with broad application prospects and important engineering value. They will continue to play an important role in future fields such as civil engineering, environmental protection, and landscape design.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

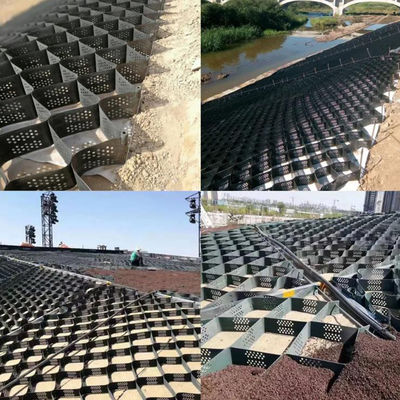

APPLICATION

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 4



INVENTION AND TESTING

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 5



PRODUCT AREA

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 6



CERTIFICATES

Smooth Textured Slope Protection Cellular Confinement System Reinforced HDPE Geocell 7
