Product Details:
|
| Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
|---|---|---|---|
| Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
| Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |
| Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
| Highlight: | Honeycomb Stabilizer System Geocell,HDPE Smooth Geocell,200mm Plastic Geocell |
||
Honeycomb Stabilizer System HDPE Smooth 200mm Plastic Geocell Road Construction
Product Introduction
Hdpe geocell is a type of mesh woven from high-strength steel wires, which is widely used in roadbed reinforcement and slope protection engineering in fields such as highways, railways, and water conservancy. The characteristic of this material lies in its strong structural stability, which can effectively prevent soil erosion, enhance soil bearing capacity, and ensure the safety and quality of the project.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|

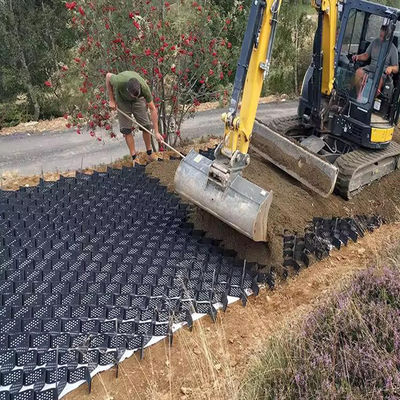

SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
