Geocell For Driveway Perforted Textured Smooth Geocell Mat And Geogrid 100mm/150mm/200mm

Large Image : Geocell For Driveway Perforted Textured Smooth Geocell Mat And Geogrid 100mm/150mm/200mm

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	CE
Model Number:	1.5-100-445

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	2000㎡ per day

Contact Now

Geocell For Driveway Perforted Textured Smooth Geocell Mat And Geogrid 100mm/150mm/200mm

Description

Raw Material:	HDPE Plastic	GeoMax Standard:	ASTM
Cell Height:	50mm-300mm	Geomax Model:	GM445
Color:	Black, Green, Brown, Black Yellow White Green, Green Or As Per Request	Welding Space:	445mm
Cell Thickness:	1.5mm	Geocell Surface:	Textured&Perforated
Highlight:	Smooth Geocell Mat , 150mm Geocell Mat , Perforted Textured Geocell Mat

Geocell For Driveway Perforted Textured Smooth Geocell Mat And Geogrid 100mm/150mm/200mm

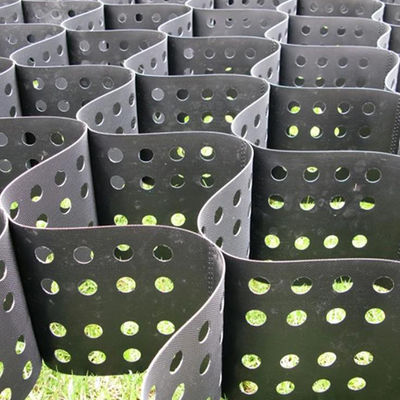

Product Introduction

The design of the hdpe geocell takes into account different engineering requirements by changing its geometric dimensions such as height and welding distance to meet specific engineering needs. Its thickness is one of the important parameters, for example, a 1.2mm thick geogrid is widely used in various engineering fields due to its moderate strength and durability. This material has good UV resistance, aging resistance and corrosion resistance, and can be used for a long time in harsh environments. The laying method and material selection of geogrid should be based on specific engineering requirements and environmental conditions to ensure the applicability and economy of the product. During the construction process, it is necessary to strictly follow relevant specifications and standards to ensure the quality and stability of the laying of the geogrid. Regularly inspect and maintain the geocell, promptly identify and address potential problems and hazards

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

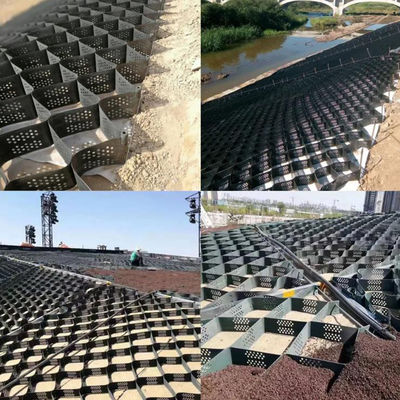

APPLICATION

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

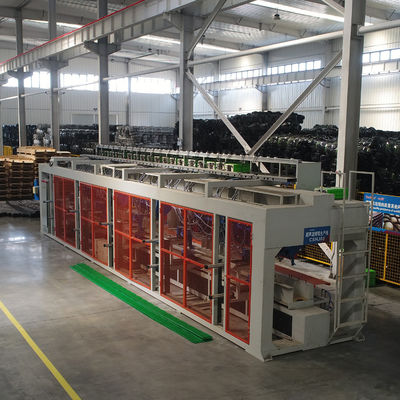

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES
