Product Details:
|
| Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
|---|---|---|---|
| Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
| Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |
| Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
| Highlight: | Smooth Plastic HDPE Geocell,Honeycomb HDPE Geocell,Gravel Stabilizer HDPE Geocell |
||
Erosion Smooth Plastic HDPE Geocell/ Geoceldas Geocell Honeycomb Gravel Stabilizer Grid Geo Cell
Product Introduction
As a new type of material in the field of civil engineering, hdpe geocells have many significant advantages.
High lateral confinement and slip resistance: hdpe geocells can provide high lateral confinement and slip resistance, effectively enhancing the bearing capacity and load dispersion of the roadbed.
Anti deformation: hdpe geocell can effectively prevent soil deformation and improve soil stability.
Chemical stability: hdpe geocell materials have good chemical stability and will not undergo performance changes due to contact with chemical substances in the soil.
Light and oxygen aging resistance, acid and alkali resistance: hdpe geocells materials have good resistance to light and oxygen aging and acid and alkali resistance, and can be used under different environmental conditions.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||

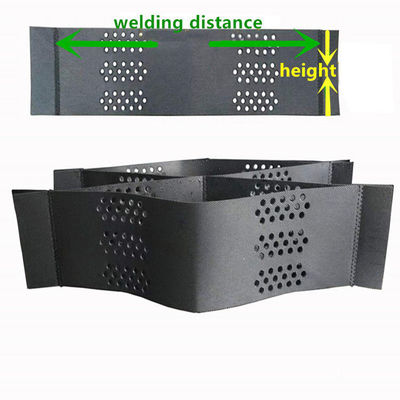

| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
