Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |

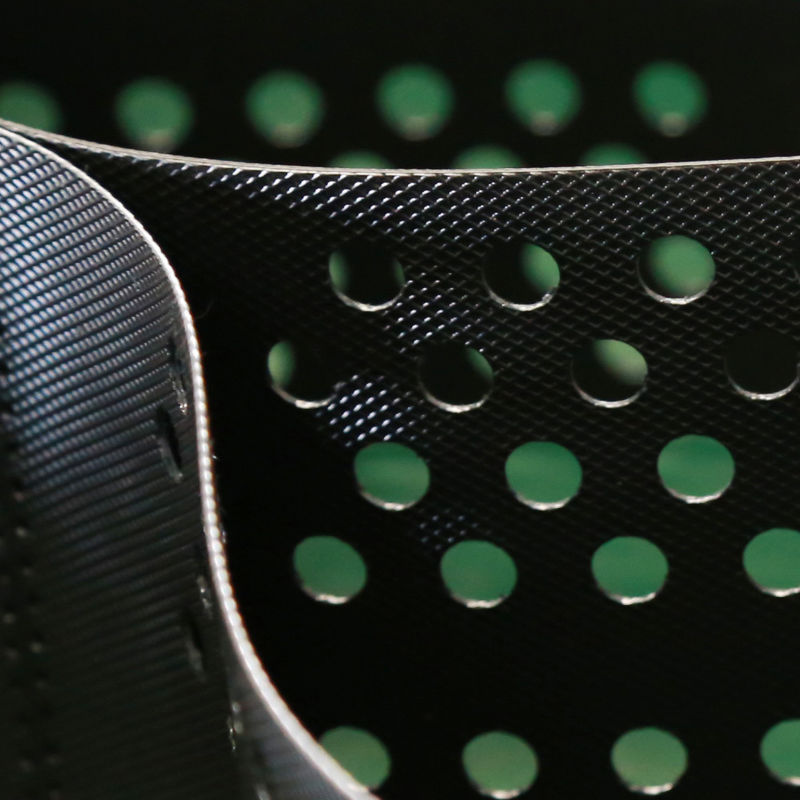

Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | 150mm HDPE Geocell,100mm HDPE Geocell,75mm HDPE Geocell |
Plastic Stabilized Gravel Paving 75mm/100mm/150mm Plastic HDPE Geocell
Product Introduction

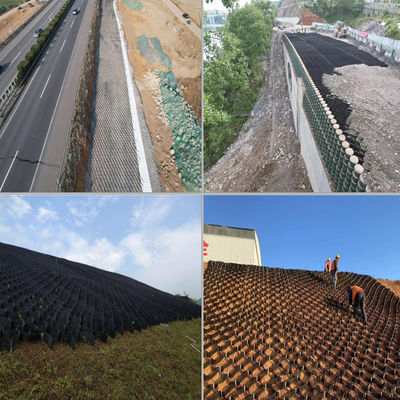

HDPE GEOCELL have a wide range of applications in many fields, including:
Stabilize highway and railway subgrades: Hdpe geocells can be used to stabilize highway and railway subgrades, improve their bearing capacity and stability.
Embankment and shallow water channel management under load-bearing capacity: In the management of embankments and shallow water channels under load-bearing capacity, hdpe geocell can effectively disperse loads and prevent soil deformation.
A hybrid retaining wall for preventing landslides and bearing gravity: Hdpe geocells play an important role in the hybrid retaining wall for preventing landslides and bearing gravity, which can enhance the bearing capacity of the roadbed and disperse loads.
Dealing with weak foundations: When encountering soft foundations, using geogrids can greatly reduce construction labor intensity, decrease roadbed thickness, and improve construction speed and performance, greatly reducing project costs.

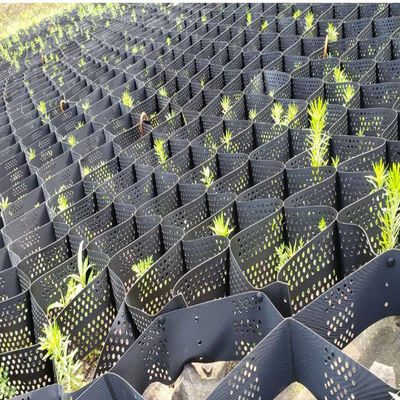

Used for constructing retaining structures: Hdpe geocells can also be used to construct retaining structures and improve soil stability.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
