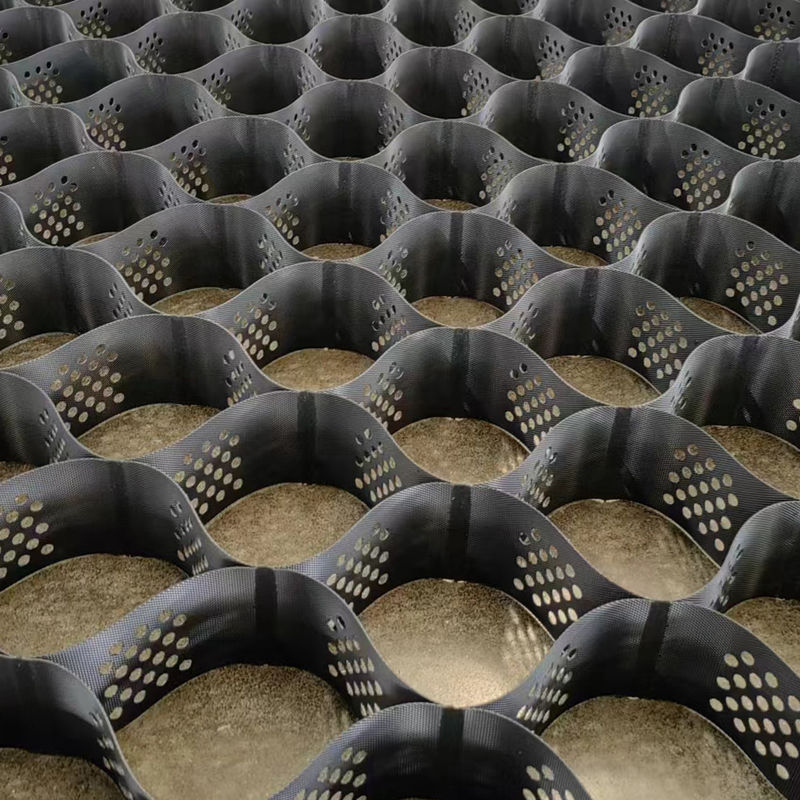

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction
Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction
Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction

Large Image :  Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-712
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction

Description
Raw Material: HDPE Plastic Geocell Standard: ASTM
Cell Height: 50mm-300mm Geocell Model: GM712
Geocell Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 712mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated&smooth
Highlight:

Textured HDPE Geocell

,

Three-Dimensional HDPE Geocell

,

Road Construction HDPE Geocell

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction





Product Introduction

Hdpe geocells have strong flexibility in expansion and contraction. During construction, hdpe geocell can be stretched into a mesh and filled with loose materials such as soil, gravel, and concrete to form a structure with strong lateral constraints and high stiffness.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

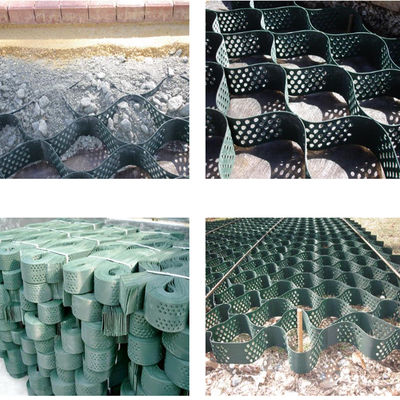

APPLICATION

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 1

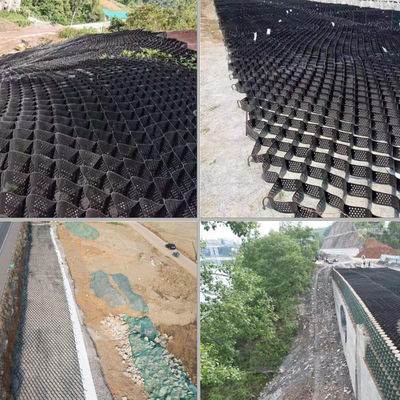

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 4



INVENTION AND TESTING

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 5



PRODUCT AREA

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 6



CERTIFICATES

Three-Dimensional Flexible Structure Textured HDPE Geoweb Geocell For Road Construction 7
