HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

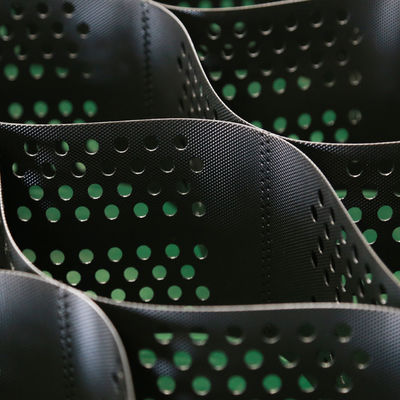

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads

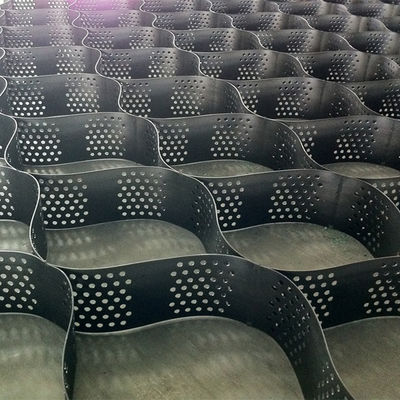

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads
HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads
HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads

Large Image :  HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-712
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads

Description
Raw Material: HDPE Plastic Geocell Standard: ASTM
Cell Height: 50mm-300mm Geocell Model: GM712
Geocell Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 712mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated&smooth
Highlight:

HDPE Geocell For Stable Soil Reinforcement

,

HDPE Geocell For Railways

,

HDPE Geocell For Airports

HDPE Geocell For Stable Soil Reinforcement High Durability For Railways/ Airports/ Municipal Roads





Product Introduction

Application fields of hdpe geocell:

1. Stable railway subgrade and road soft foundation;

2. Can firmly withstand heavy embankments and retaining walls;

3. Consolidate pipeline and sewer support structures;

4. Avoid mudslides and reinforce the load-bearing capacity of the mixed barriers;

5. Stable independent walls, docks, embankments, etc;

6. Manage deserts, beaches, river channels, and riverbanks;

7. When constructing a embankment on a slope with a natural inclination of only 1:5 on the ground, the foundation of the embankment should be excavated with steps. The embankment should be reinforced with soil filling in areas with sandstorms, embankments on the back of the platform, permafrost areas, and loess collapsible embankments to reduce road surface cracks.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

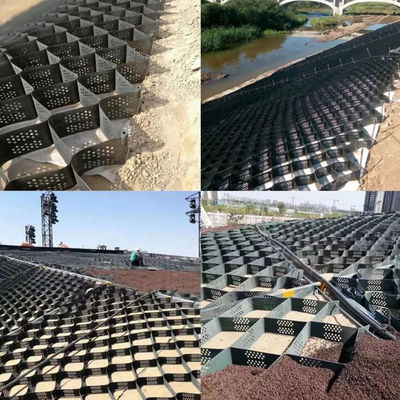

APPLICATION

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 4



INVENTION AND TESTING

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 5



PRODUCT AREA

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 6



CERTIFICATES

HDPE Geocell For Stable Soil Reinforcement, High Durability For Railways / Airports / Municipal Roads 7
