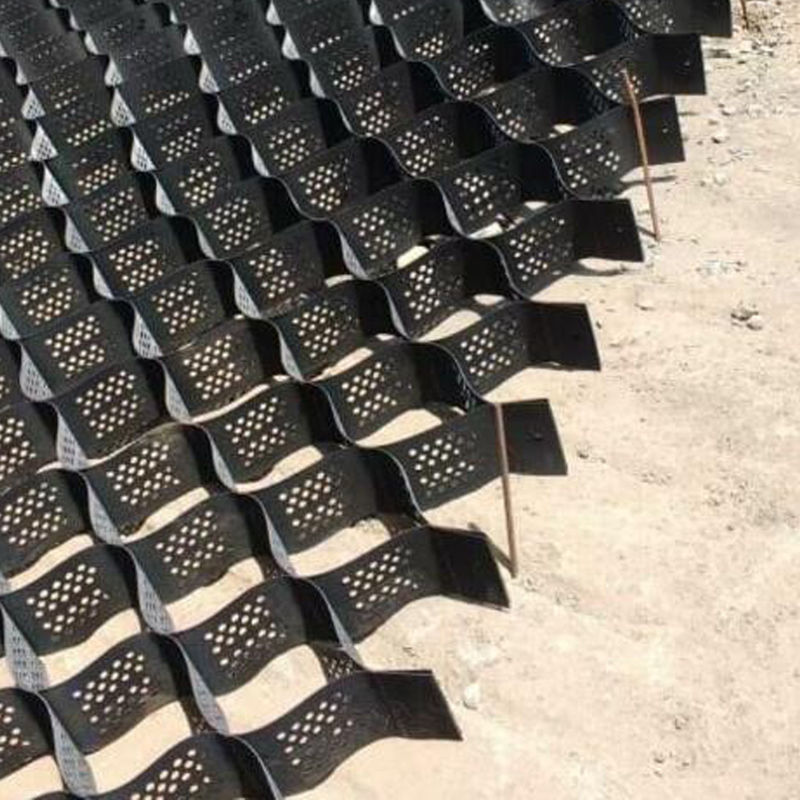

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

Large Image :  Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Road Base Stabilization HDPE Geocell

,

Smooth HDPE Geocell

,

Perforated HDPE Geocell

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization





Product Introduction

Hdpe geocell, also known as "three-dimensional solid soil", is a new type of civil engineering material. It is made of high-strength polypropylene (PP) or polyethylene (PE) material, and on the basis of horizontal and vertical reinforcement, a honeycomb structure is formed by welding or fusion. This structure can effectively disperse and transfer loads, thereby improving the bearing capacity and stability of the soil.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

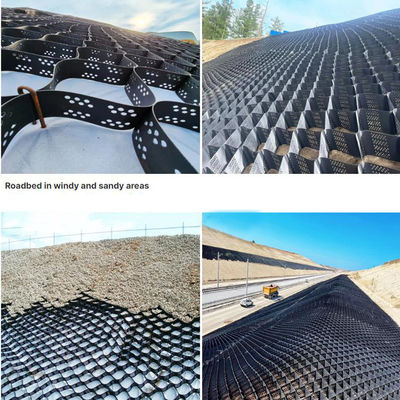

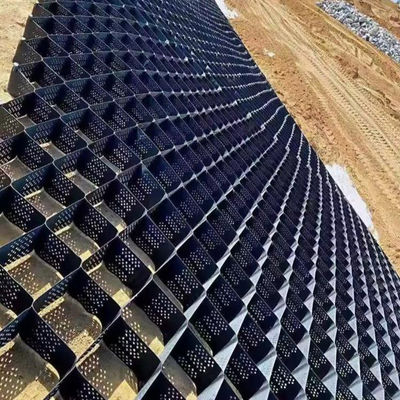

APPLICATION

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 4



INVENTION AND TESTING

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 5



PRODUCT AREA

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 6



CERTIFICATES

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization 7
