Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection
Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection
Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection

Large Image :  Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Slop Protection HDPE Geocell

,

Heavy Duty HDPE Geocell

,

Above Ground HDPE Geocell

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection





Product Introduction

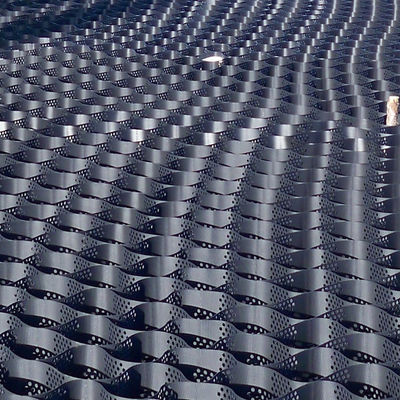

Hdpe geocells are widely used in various engineering projects, such as highways, railways, dams, airports, ports, etc. It can effectively reinforce soil, prevent landslides and collapses, improve the bearing capacity of roads, and extend the service life of roads. Meanwhile, in land reclamation projects, plastic geogrids can also be used to improve soil stability and prevent soil erosion.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

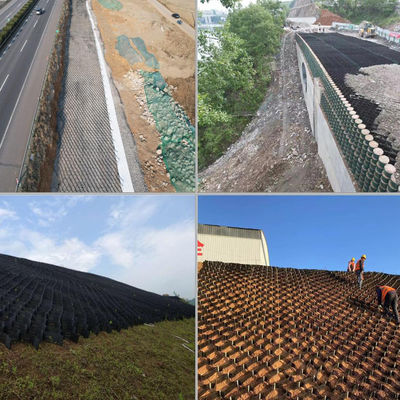

APPLICATION

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 4



INVENTION AND TESTING

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 5



PRODUCT AREA

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 6



CERTIFICATES

Gravel Stabilizer HDPE Geocell Manufacture Heavy Duty Above Ground For Slop Protection 7
