Product Details:
|
| Material: | HDPE Plastic | Standard: | ASTM |
|---|---|---|---|
| Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
| Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |

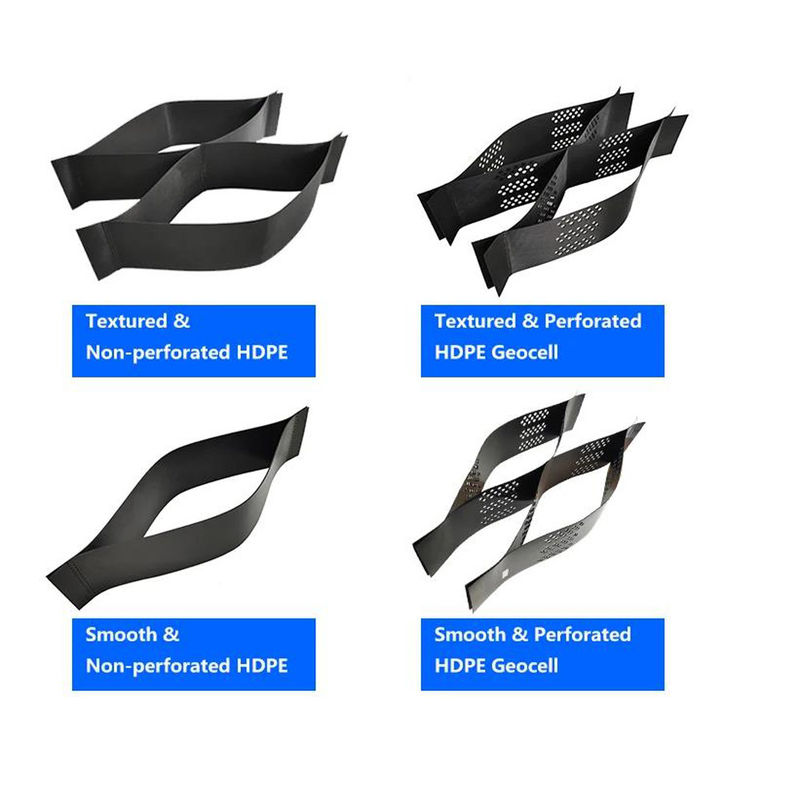

| Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
| Highlight: | HDPE Geocell Gravel Stabilizers,Slope Protection Driveway Geocells,PP Plastic Honeycomb Geocells |
||
HDPE Geocell Gravel Stabilizers PP Plastic Honeycomb Geocells For Slope Protection Driveway
Product Introduction
The advantages of hdpe geocell
The welding point has high strength. Due to the advanced ultrasonic welding technology used in the production of geotechnical cells, the strength of the welding points can meet the lateral displacement limit required by the filling material. After the soil absorbs moisture, it will rapidly expand, and the strength of the cell sheet is sufficient to fix the soil without being stretched. That is to say, the grid of the cell will not be broken by gravel and soil, and can provide sufficient shrinkage force.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
