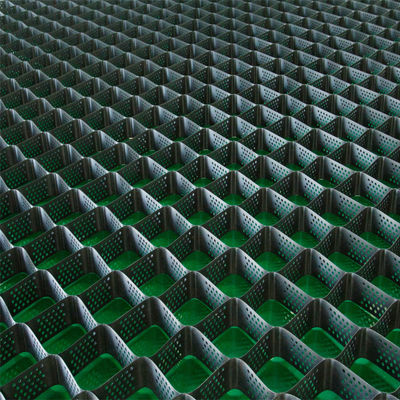

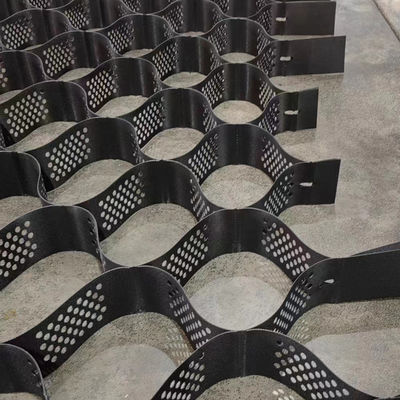

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm For Slop Protection

Certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
China Anhui Hechuang New Synthetic Materials Co., Ltd certification
Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm For Slop Protection

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection
ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection
ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection

Large Image :  ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm For Slop Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm For Slop Protection

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

ASTM HDPE Plastic Geocell

,

100mm HDPE Plastic Geocell

,

150mm HDPE Plastic Geocell

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm For Slop Protection



Product Introduction



The structure of hdpe geocell is not only suitable for road paving and construction, but also performs equally well in other fields. Due to the unique structure of the honeycomb, the stability of the building is much stronger than before, so as long as it can be utilized reasonably, the potential of the hdpe geocell is definitely beyond people's imagination.

Firstly, the railway subgrade closest to the expressway. Since geogrids can be used for constructing expressways, can railway subgrade also be used? After proposing this hypothesis, scientists immediately conducted relevant experiments, and the final experimental results proved that the stability provided by the geocell was sufficient to support the operation of the railway.


  •



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

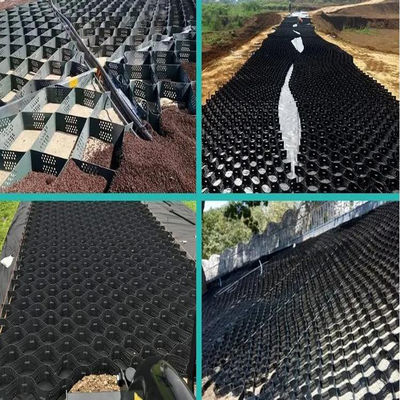

APPLICATION

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 4



INVENTION AND TESTING

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 5



PRODUCT AREA

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 6



CERTIFICATES

ASTM HDPE Plastic Geocell Road Gravel Honeycomb Grid 100mm 150mm  For Slop Protection 7
