Product Details:
|
| Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
|---|---|---|---|
| Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
| Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |
| Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
| Highlight: | Slope Protection Geocell,PP HDPE Geocell,Honeycomb Grid Gravel Stabilizer |
||
Honeycomb Grid Gravel Stabilizer With Plastic PP HDPE Geocell For Slope Protection Geocell
Product Introduction
Comparison between Geocell and Geogrid
1. Common points: Both are polymer composite materials; And it has the characteristics of high strength, strong bearing capacity, small deformation, small creep, corrosion resistance, high friction coefficient, long service life, and convenient and fast construction; They are all used for soft soil foundation reinforcement, retaining walls, and pavement crack resistance engineering in highways, railways, bridge piers, approach roads, docks, dams, slag yards, and other fields.
2. Differences:
(1) Shape structure: The geocell is a three-dimensional mesh structure, while the geogrid is a two-dimensional mesh or a three-dimensional mesh screen structure with a certain height.
(2) Lateral restriction and stiffness: Geocells are superior to geogrids.
(3) Bearing capacity and load dispersion effect: Geocells are superior to geogrids
(4) Anti slip and anti deformation ability: Geocells are superior to geogrids
3. Economic comparison: In terms of engineering usage costs, geogrids are slightly higher than geocells.
Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
 |
SOIL REINFORCEMETNGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|

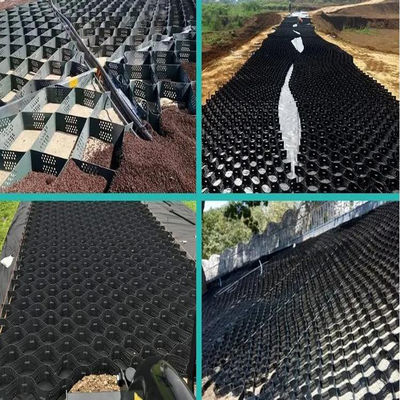

SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
