Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-300mm | Geomax Model: | GM445 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 445mm |
Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | Slope Protection Geocell,HDPE Geocell Grid,Retaining Wall Geocell |

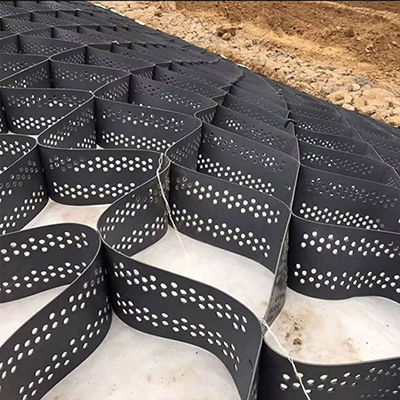

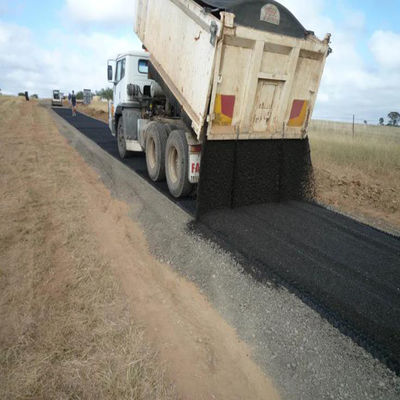

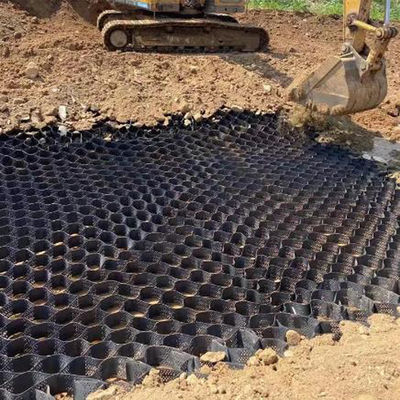

Driveway Geocells Erosion Control Ground Grid Paver Geocell For Retaining Wall HDPE Geocell Grid For Slope Protection
Product Introduction
Geocell is a new type of geosynthetic material with a three-dimensional mesh structure. The flexible structural system composed of this material has excellent characteristics such as high overall strength, high stiffness, corrosion resistance, and aging resistance. Compared with structural layers composed of other geotechnical materials, the rebound modulus and deformation modulus can be increased by more than twice, and the foundation bearing capacity is greater than 180kPa. Compared with existing reinforcement methods, the total project cost can be reduced by 10-15%. And it can achieve the ecological restoration function along the highway, achieving the purpose of greening and beautifying the environment.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
