Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm
Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm
Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm

Large Image :  Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

HDPE Geocell Slope Stabilizer

,

Gravel Grid Slope Stabilizer

,

Cellular Confinement System Slope Stabilizer

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm



Product Introduction

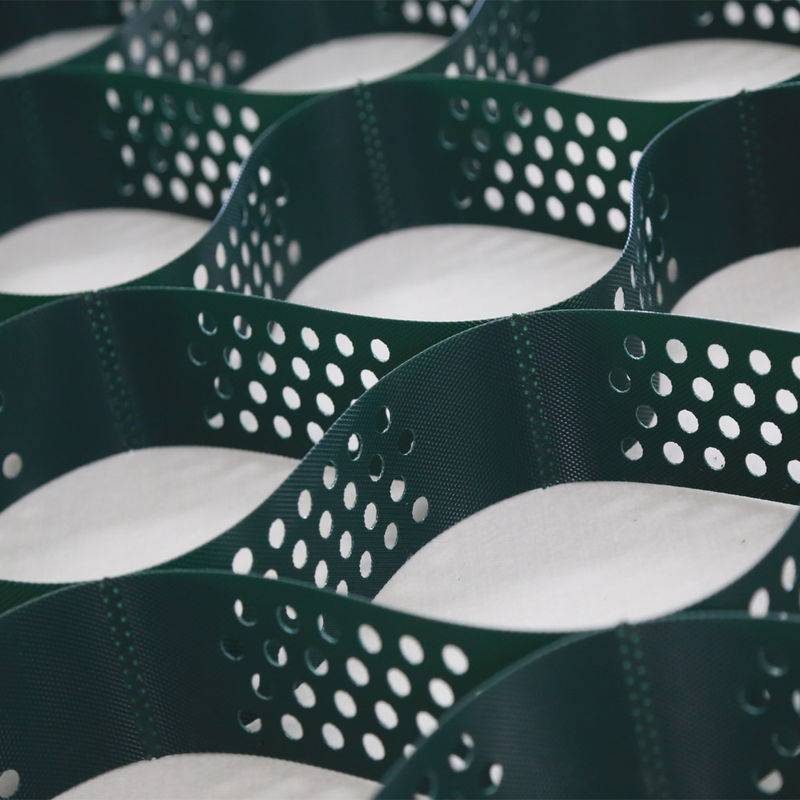

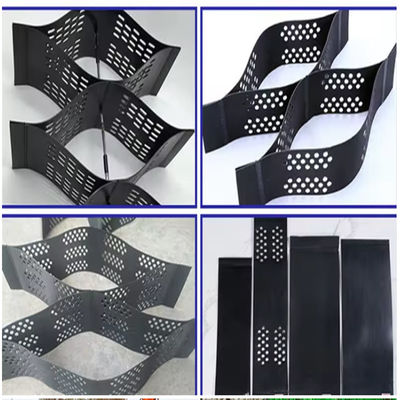

Geocell is a mesh structure formed by high-strength HDPE or PP copolymer broadband, which is welded or riveted by strong force It can stretch and fold freely during transportation, and when in use, it can be opened and filled with soil, rock or concrete materials, forming a structure with strong lateral restraint and high stiffness It can be used as a cushion layer to increase the bearing capacity of weak foundations, and can also be laid on slopes to form slope protection structures. It can also be used to construct retaining structures, reinforce foundations, and protect railway slopes The application of geosynthetic materials in highways is becoming increasingly widespread. Practice has proven that geosynthetic cells are a new type of highway construction material with more advantages, strong practicality, suitable price, and good application effects compared to other geosynthetic materials


  •



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 1

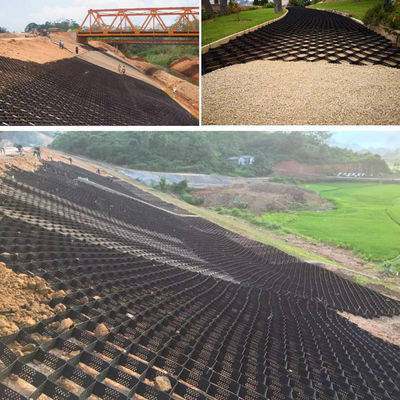

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 4



INVENTION AND TESTING

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 5



PRODUCT AREA

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 6



CERTIFICATES

Cellular Confinement System Reinforced Soil Slope Stabilizer Gravel Grid HDPE Geocell 445mm 7
